Husqvarna Gth2648 - Mower Deck & Cutting Deck

Name: Husqvarna Gth2648 - Mower Deck & Cutting Deck
SKU: gth2648_2008_02_mower_deck_cutting_deck-group
Price: 0.86 GBP
Availability: InStock

Part No. gth2648_2008_02_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Gth2648 - Mower Deck & Cutting Deck

Description

Husqvarna Gth2648

Model Year - 2008-02

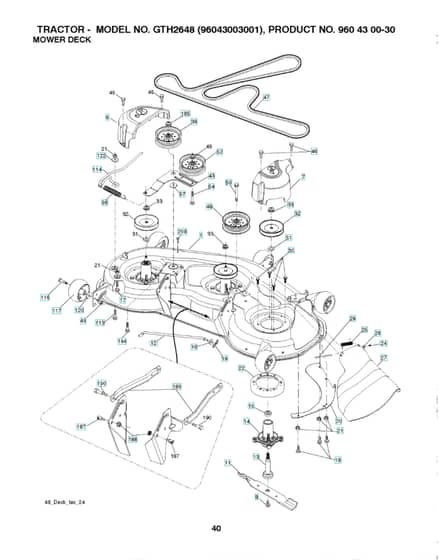

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
11	HV532 18 00-54 Available to backorder	Blade	£28.72 £23.93
12	HV532 40 03-37 Available to backorder	Tige Anti-Roulis	£14.27 £11.89
13	HV532 18 72-91 Available to backorder	Shaft	£62.16 £51.80
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
17	HV596 03 94-01 Available to backorder	Bolt	£1.03 £0.86
18	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
19	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
20	HV532 17 43-78 Available to backorder	Baffle	£34.60 £28.83
22	HV531 16 77-01 In stock	Stripper. Mandrel.Black	£13.69 £11.41
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
29	HV532 13 14-91 In stock	Shaft	£10.15 £8.46
31	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
47	HV593 77 34-10 Available to backorder	Belt	£113.04 £94.20
97	HV532 17 85-15 In stock	Washer	Was £8.88 £7.40 Special Price £5.82 £4.85
98	HV532 19 61-05 Available to backorder	Spring	£19.66 £16.38
113	HV872 11 05-08 Available to backorder	Bolt	£3.59 £2.99
116	HV596 43 44-04 Available to backorder	Bolt	£5.48 £4.57
117	HV532 17 48-73 Available to backorder	Wheel	£20.74 £17.28
185	HV873 90 07-00 In stock	Nut	Was £4.92 £4.10 Special Price £3.54 £2.95
187	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
188	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
189	HV532 19 51-85 Available to backorder	Arm	£33.31 £27.76
190	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
194	HV872 14 07-16 Available to backorder	Bolt	£8.34 £6.95
208	HV817 67 06-08 Available to backorder	Screw	£5.24 £4.37
