Description

Husqvarna Gth2648

Model Year - 2008-02

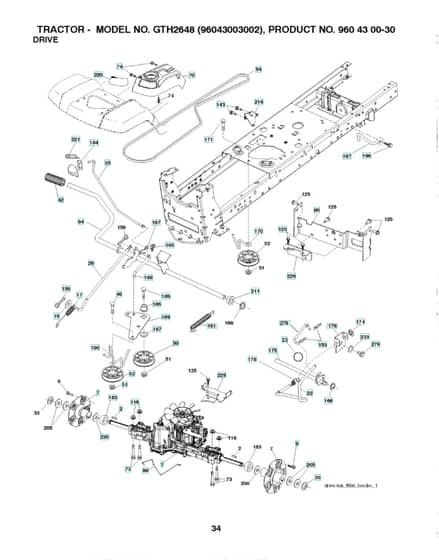

Drive - Parts Diagram

	Part No.	Details
9	HV532 14 00-80 Available to backorder	Bolt	£7.06 £5.88
23	HV532 14 08-45 Available to backorder	Knob	£21.16 £17.63
29	HV532 40 72-45 Available to backorder	Rod.Brake.K66 Subs/2	£9.62 £8.02
33	HV812 00 00-53 Available to backorder	E-Clip	£0.90 £0.75
35	HV532 19 95-91 Available to backorder	Rod	£9.83 £8.19
49	HV872 11 06-14 Available to backorder	Bolt	£7.06 £5.88
50	HV532 19 43-27 Available to backorder	Pulley	£43.55 £36.29
52	HV532 19 43-26 Available to backorder	Pulley	£42.83 £35.69
56	HV532 12 59-07 Available to backorder	Belt	£62.76 £52.30
64	HV532 19 62-00 Available to backorder	Shaft	£100.32 £83.60
73	HV874 49 05-44 Available to backorder	Screw	£7.06 £5.88
74	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
99	HV532 41 57-44 Available to backorder	Rod	£11.54 £9.62
116	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
143	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
160	HV532 16 94-84 Available to backorder	Pin	£4.12 £3.43
161	HV532 10 57-09 Available to backorder	Spring	£16.97 £14.14
166	HV532 19 72-90 Available to backorder	Nut	£1.79 £1.49
167	HV532 40 52-57 Available to backorder	Latch	£5.78 £4.82
171	HV872 11 06-16 Available to backorder	Bolt	£7.06 £5.88
174	HV532 19 72-89 Available to backorder	Nut	£2.05 £1.71
186	HV532 19 43-21 In stock	Spacer	£14.36 £11.97
188	HV532 19 43-23 Available to backorder	Link	£7.96 £6.63
189	HV532 19 43-17 Available to backorder	Plate	£14.74 £12.28
196	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
197	HV532 19 97-69 Available to backorder	Bracket	£10.90 £9.08
211	HV532 19 62-12 Available to backorder	Bushing	£10.26 £8.55
221	HV532 40 31-87 Available to backorder	Spring	£3.84 £3.20
226	HV532 40 71-09 Available to backorder	Bracket	£19.88 £16.57
