Husqvarna Gth263T - Chassis & Enclosures

Description

Husqvarna Gth263T

Model Year -

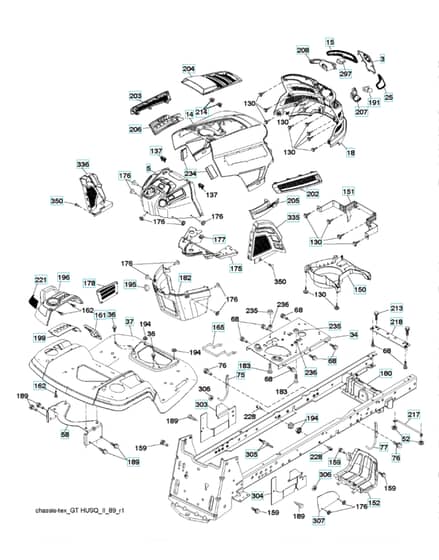

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 43 18-82 Available to backorder	Guard	£110.72 £92.27
15	HV532 43 97-33 Available to backorder	Lens	£22.00 £18.33
25	HV532 44 33-85 Available to backorder	Lens	£22.64 £18.87
68	HV817 49 05-08 Available to backorder	Screw	£3.62 £3.02
75	HV532 40 26-80 Available to backorder	Rod Upstop	£14.56 £12.13
76	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
130	HV532 41 63-58 Available to backorder	Screw	£2.06 £1.72
137	HV532 40 75-90 Available to backorder	Damping Piece	£5.96 £4.97
151	HV532 43 66-70 Available to backorder	Bracket	£70.52 £58.77
152	HV532 43 98-70 Available to backorder	Shield	£65.34 £54.45
159	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
162	HV532 14 24-32 Available to backorder	Screw	£2.34 £1.95
176	HV532 40 07-76 Available to backorder	Screw	£2.06 £1.72
177	HV532 19 52-27 Available to backorder	Bushing	£10.72 £8.93
178	HV532 19 97-82 Available to backorder	Net	£29.12 £24.27
182	HV532 40 68-59 Available to backorder	Dash	£168.20 £140.17
183	HV874 52 05-20 Available to backorder	Bolt	£4.78 £3.98
194	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
196	HV532 43 97-16 Available to backorder	Console	£71.16 £59.30
202	HV532 43 97-28 Available to backorder	Cover	£29.12 £24.27
203	HV532 43 97-27 Available to backorder	Cover	£29.76 £24.80
205	HV532 43 97-30 Available to backorder	Skirt	£27.18 £22.65
206	HV532 43 97-29 Available to backorder	Skirt	£33.00 £27.50
214	HV532 19 91-45 Available to backorder	Clip	£0.92 £0.77
221	HV532 19 89-09 Available to backorder	Lens	£17.46 £14.55
228	HV532 19 51-61 Available to backorder	Stud	£2.98 £2.48
234	HV532 40 47-42 Available to backorder	Damping Piece	£12.28 £10.23
235	HV532 40 61-29 Available to backorder	Spacer	£9.16 £7.63
236	HV873 93 05-00 Available to backorder	Nut	£2.34 £1.95
350	HV532 44 51-43 Available to backorder	Clip	£1.01 £0.84
