Husqvarna Gth2550 B - Mower Lift & Deck Lift

Description

Husqvarna Gth2550 B

Model Year - 2001-05

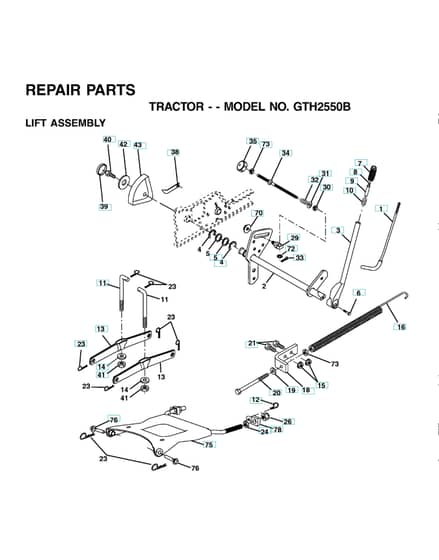

Mower Lift & Deck Lift - Parts Diagram

	Part No.	Details
4	HV812 00 00-22 Available to backorder	Retainer Ring	£0.90 £0.75
7	HV532 12 56-31 Available to backorder	Handle	£12.82 £10.68
13	HV532 13 98-68 Available to backorder	Lever	£18.60 £15.50
15	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
21	HV874 76 06-16 Available to backorder	Bolt	£2.09 £1.74
24	HV596 43 34-01 In stock	Nut	Was £3.43 £2.86 Special Price £2.50 £2.08
29	HV532 15 02-33 Available to backorder	Trunnion	£11.66 £9.72
31	HV819 13 10-16 Available to backorder	Washer	£2.30 £1.92
35	HV532 13 80-57 Available to backorder	Knob	£17.32 £14.43
38	HV532 15 50-97 Available to backorder	Indicator	£5.02 £4.18
40	HV817 06 05-16 Available to backorder	Screw	£5.02 £4.18
43	HV532 12 39-34 Available to backorder	Indicator	£5.29 £4.41
72	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
75	HV532 17 58-05 Available to backorder	Plate	£79.92 £66.60
76	HV532 17 55-60 Available to backorder	Pin Retaining Screw	£13.46 £11.22
