Husqvarna Gth2548 Xp - Mower Deck & Cutting Deck

Name: Husqvarna Gth2548 Xp - Mower Deck & Cutting Deck
SKU: gth2548_xp_2004_01_mower_deck_cutting_deck-group
Price: 1.69 GBP
Availability: InStock

Part No. gth2548_xp_2004_01_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Gth2548 Xp - Mower Deck & Cutting Deck

Description

Husqvarna Gth2548 Xp

Model Year - 2004-01

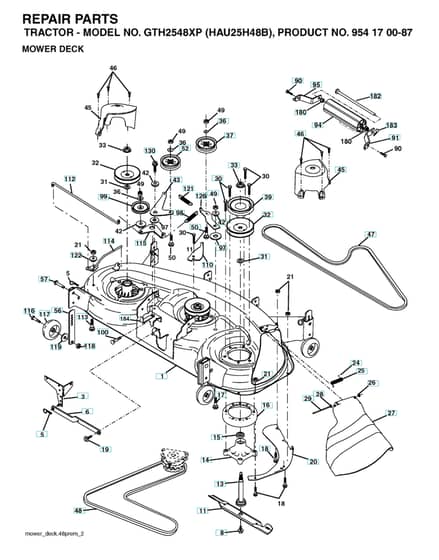

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
-1	HV532 17 43-56 Available to backorder	Mandrel	£104.52 £87.10
6	HV532 17 80-24 Available to backorder	Lever	£23.08 £19.23
11	HV532 18 00-54 Available to backorder	Blade	£28.72 £23.93
13	HV532 17 43-60 Available to backorder	Shaft	£57.74 £48.12
14	HV532 17 43-58 Available to backorder	Mandrel	£68.16 £56.80
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
16	HV531 16 77-01 In stock	Stripper. Mandrel.Black	£13.69 £11.41
18	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
20	HV532 17 43-78 Available to backorder	Baffle	£34.60 £28.83
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
29	HV532 13 14-91 In stock	Shaft	£10.15 £8.46
37	HV532 17 79-68 Available to backorder	Pulley	£61.00 £50.83
39	HV532 17 43-75 In stock	Pulley	£39.94 £33.28
45	HV532 18 08-06 Available to backorder	Cover	£17.94 £14.95
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
47	HV532 18 08-08 Available to backorder	V-Belt	£82.56 £68.80
48	HV532 17 43-68 Available to backorder	V-Belt	£84.00 £70.00
49	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
94	HV532 17 60-66 Available to backorder	Roller	£15.66 £13.05
95	HV532 18 05-34 Available to backorder	Bracket	£13.46 £11.22
97	HV532 17 85-15 In stock	Washer	Was £8.88 £7.40 Special Price £5.82 £4.85
98	HV532 17 94-79 Available to backorder	Spring	£17.32 £14.43
100	HV872 11 06-16 Available to backorder	Bolt	£7.06 £5.88
113	HV872 11 05-06 Available to backorder	Bolt	£3.97 £3.31
117	HV532 13 39-57 Available to backorder	Wheel	£25.87 £21.56
121	HV532 17 43-71 Available to backorder	Spring	£20.50 £17.08
130	HV817 00 06-16 Available to backorder	Screw	£6.02 £5.02
180	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
