Husqvarna Gth250 Xp - Chassis & Enclosures

Husqvarna Gth250 Xp - Chassis & Enclosures

Part No. gth250_xp_2005_01_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

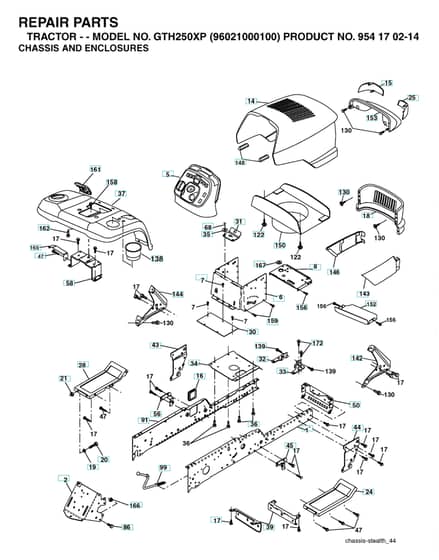

Husqvarna Gth250 Xp - Chassis & Enclosures

Husqvarna Gth250 Xp - Chassis & Enclosures

Description

Husqvarna Gth250 Xp

Model Year - 2005-01

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	18		HV532 18 28-73 Available to backorder	Cala*Rpl.Par 532175289418		£87.36 £72.80
	20		HV874 78 06-16 Available to backorder	Bolt		£6.29 £5.24
	47		HV817 49 06-08 Available to backorder	Screw		£5.24 £4.37
	68		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	99		HV532 17 71-43 Available to backorder	Axe		£16.66 £13.88
	122		HV532 16 14-64 Available to backorder	Screw		£1.20 £1.00
	158		HV817 67 06-08 Available to backorder	Screw		£5.24 £4.37
	159		HV817 00 06-12 Available to backorder	Screw		£5.78 £4.82
	162		HV532 14 24-32 Available to backorder	Screw		£2.30 £1.92

Description

Husqvarna Gth250 Xp

Model Year - 2005-01

Chassis & Enclosures - Parts Diagram
