Husqvarna Gth2254 Xp - Seat

Husqvarna Gth2254 Xp - Seat

Part No. gth2254_xp_2005_06_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Gth2254 Xp - Seat

Husqvarna Gth2254 Xp - Seat

Description

Husqvarna Gth2254 Xp

Model Year - 2005-06

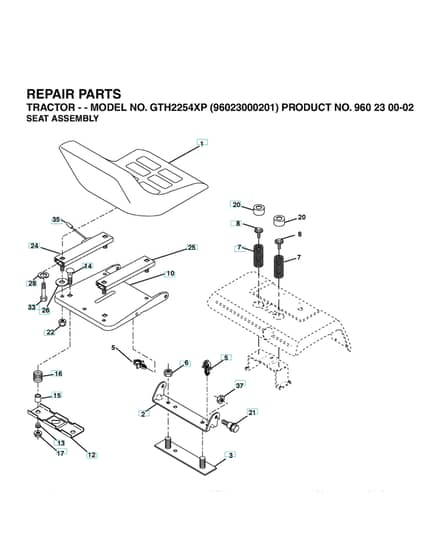

Seat - Parts Diagram

Ref.		Img.	Part No.	Details
	2		HV532 14 05-51 Available to backorder	Bracket		£23.08 £19.23
	3		HV532 14 06-75 Available to backorder	Strap		£8.34 £6.95
	5		HV532 14 50-06 Available to backorder	Clip		£0.90 £0.75
	8		HV532 17 18-77 Available to backorder	Bolt		£5.02 £4.18
	13		HV532 12 12-48 Available to backorder	Bushing		£6.01 £5.01
	14		HV872 05 04-12 Available to backorder	Bolt		£3.59 £2.99
	15		HV532 12 12-49 Available to backorder	Spacer		£4.50 £3.75
	21		HV532 17 18-52 Available to backorder	Bolt		£5.16 £4.30
	33		HV874 78 05-12 Available to backorder	Screw		£2.99 £2.49
	37		HV596 04 05-01 Available to backorder	Lock Nut		£2.03 £1.69

Description

Husqvarna Gth2254 Xp

Model Year - 2005-06

Seat - Parts Diagram
