Husqvarna Gth220 - Mower Deck & Cutting Deck

Name: Husqvarna Gth220 - Mower Deck & Cutting Deck
SKU: gth220_1999_03_mower_deck_cutting_deck-group
Price: 1.68 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Gth220 - Mower Deck & Cutting Deck

Description

Husqvarna Gth220

Model Year - 1999-03

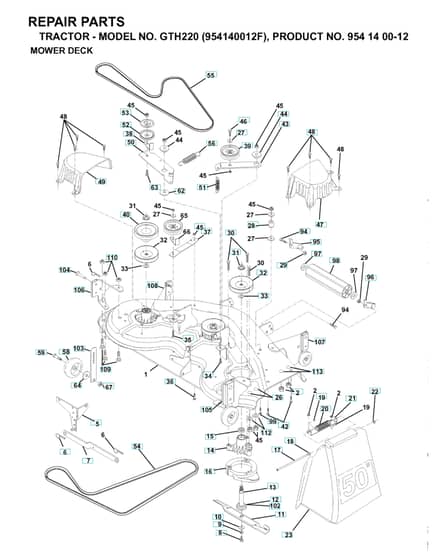

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 14 36-51 Available to backorder	Mandrel	£112.20 £93.50
8	HV532 85 08-57 Available to backorder	Bolt	£6.30 £5.25
10	HV532 14 02-96 Available to backorder	Washer	£8.40 £7.00
11	HV532 13 73-80 Available to backorder	Ride On Blade	£23.32 £19.43
12	HV532 12 98-95 Available to backorder	Bearing	£9.28 £7.73
13	HV532 13 75-53 Available to backorder	Shaft	£49.66 £41.38
14	HV532 13 71-52 Available to backorder	Bearing Housing	£64.10 £53.42
15	HV532 11 04-85 In stock	Bearing	£8.52 £7.10
19	HV532 10 53-04 Available to backorder	Hub Cap	£3.48 £2.90
20	HV532 12 37-13 In stock	Spring	£11.34 £9.45
21	HV532 13 76-07 Available to backorder	Bracket	£17.14 £14.28
22	HV532 11 04-52 Available to backorder	Nut	£2.02 £1.68
35	HV872 11 06-16 Available to backorder	Bolt	£7.12 £5.93
36	HV872 11 06-08 Available to backorder	Bolt	£7.12 £5.93
42	HV595 90 16-01 Available to backorder	Bolt	£4.30 £3.58
45	HV596 32 26-01 Available to backorder	Nut	£3.79 £3.16
48	HV532 13 77-29 Available to backorder	Screw	£2.52 £2.10
51	HV532 13 72-73 Available to backorder	Spring	£10.36 £8.63
52	HV532 13 92-45 Available to backorder	Pulley	£38.09 £31.74
55	HV532 14 49-59 Available to backorder	Belt	£72.02 £60.02
56	HV532 13 86-87 Available to backorder	Spring	£15.22 £12.68
58	HV532 13 39-57 Available to backorder	Wheel	£26.12 £21.77
94	HV874 76 06-16 Available to backorder	Bolt	£2.06 £1.72
98	HV532 13 22-64 Available to backorder	Roller	£18.56 £15.47
99	HV872 11 06-14 Available to backorder	Bolt	£7.12 £5.93
102	HV532 15 33-90 Available to backorder	Gasket	£4.66 £3.88
