Husqvarna Gth220 - Chassis & Enclosures

Husqvarna Gth220 - Chassis & Enclosures

Description

Husqvarna Gth220

Model Year - 1999-03

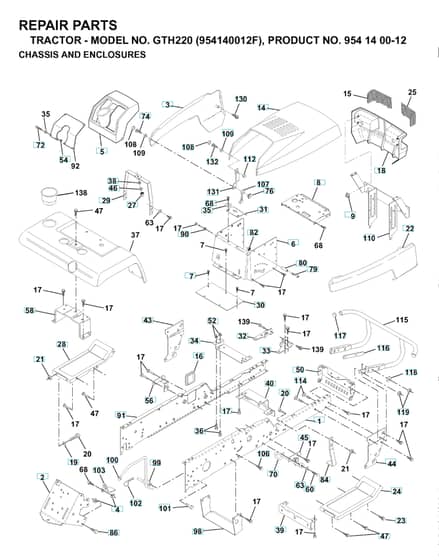

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	20		HV874 76 06-16 Available to backorder	Bolt		£2.06 £1.72
	36		HV874 78 05-12 Available to backorder	Screw		£3.04 £2.53
	38		HV596 02 98-01 Available to backorder	Washer		£2.44 £2.03
	47		HV817 49 06-08 Available to backorder	Screw		£5.32 £4.43
	52		HV596 04 05-01 Available to backorder	Lock Nut		£2.06 £1.72
	68		HV817 49 05-08 Available to backorder	Screw		£3.62 £3.02
	80		HV532 00 72-06 Available to backorder	Spacer		£2.72 £2.27
	100		HV532 12 42-36 Available to backorder	Plunger		£5.68 £4.73
	101		HV817 49 06-28 Available to backorder	Screw		£7.26 £6.05
	107		HV532 10 98-08 Available to backorder	Latch		£8.82 £7.35
	119		HV596 32 26-01 Available to backorder	Nut		£3.79 £3.16

Description

Husqvarna Gth220

Model Year - 1999-03

Chassis & Enclosures - Parts Diagram
