Husqvarna Gt54Ls - Mower Deck & Cutting Deck

Name: Husqvarna Gt54Ls - Mower Deck & Cutting Deck
SKU: gt54ls_mower_deck_cutting_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. gt54ls_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Gt54Ls - Mower Deck & Cutting Deck

Description

Husqvarna Gt54Ls

Model Year -

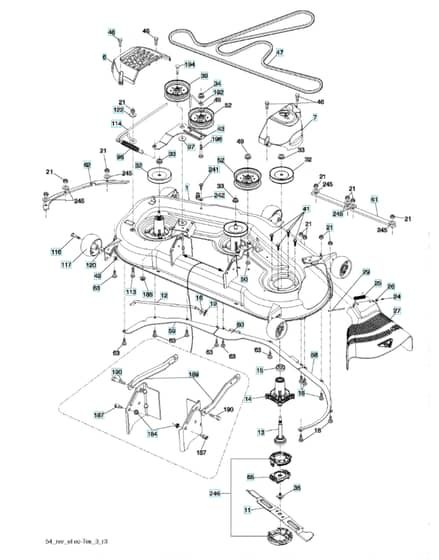

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
6	HV532 19 60-66 Available to backorder	Cover	£36.54 £30.45
7	HV532 19 71-81 Available to backorder	Cover	£33.31 £27.76
12	HV532 40 03-37 Available to backorder	Tige Anti-Roulis	£14.27 £11.89
18	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
19	HV532 19 42-08 Available to backorder	Pin	£1.39 £1.16
24	HV532 10 53-04 Available to backorder	Hub Cap	£3.52 £2.93
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
29	HV532 13 14-91 In stock	Shaft	£10.15 £8.46
34	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
35	HV584 30 93-01 Available to backorder	Screw	£13.87 £11.56
41	HV584 95 39-01 Available to backorder	Bolt	£5.88 £4.90
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
47	HV587 68 67-10 Available to backorder	Belt	£102.84 £85.70
50	HV872 11 06-16 Available to backorder	Bolt	£7.06 £5.88
58	HV532 18 73-42 Available to backorder	Baffle	£21.78 £18.15
59	HV532 18 73-44 Available to backorder	Baffle	£30.76 £25.63
60	HV532 18 76-07 Available to backorder	Baffle	£32.04 £26.70
61	HV585 32 26-05 Available to backorder	Reinforcement Plate	£37.12 £30.93
62	HV585 32 28-05 Available to backorder	Reinforcement Plate	£10.26 £8.55
65	HV580 95 40-03 Available to backorder	Blade Holder	£103.08 £85.90
97	HV532 17 85-15 In stock	Washer	Was £8.88 £7.40 Special Price £5.82 £4.85
98	HV532 19 61-05 Available to backorder	Spring	£19.66 £16.38
113	HV872 11 05-08 Available to backorder	Bolt	£3.59 £2.99
116	HV596 43 44-04 Available to backorder	Bolt	£5.48 £4.57
117	HV589 52 73-01 Available to backorder	Wheel	£20.74 £17.28
184	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
185	HV873 90 07-00 In stock	Nut	Was £4.92 £4.10 Special Price £3.54 £2.95
187	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
189	HV532 19 51-85 Available to backorder	Arm	£33.31 £27.76
190	HV532 19 65-39 Available to backorder	Bolt	£6.40 £5.33
192	HV532 19 84-68 Available to backorder	Belt Guide	£10.90 £9.08
194	HV874 49 07-36 Available to backorder	Bolt	£8.98 £7.48
241	HV532 15 29-27 In stock	Screw	Was £2.58 £2.15 Special Price £1.78 £1.48
242	HV532 41 55-98 In stock	Hose Coupling	£5.20 £4.33
246	HV586 63 85-01 Available to backorder	Cap	£34.88 £29.07
