Husqvarna Gt54Cs - Mower Deck & Cutting Deck

Description

Husqvarna Gt54Cs

Model Year -

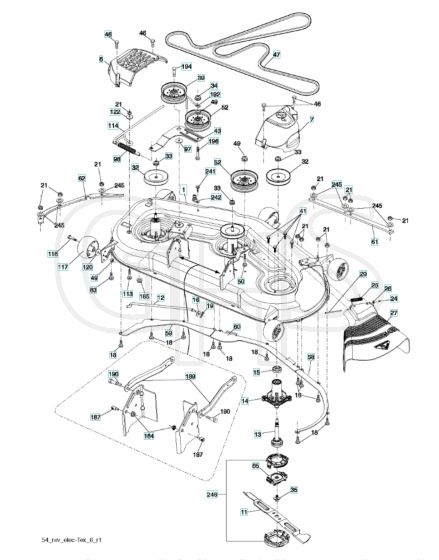

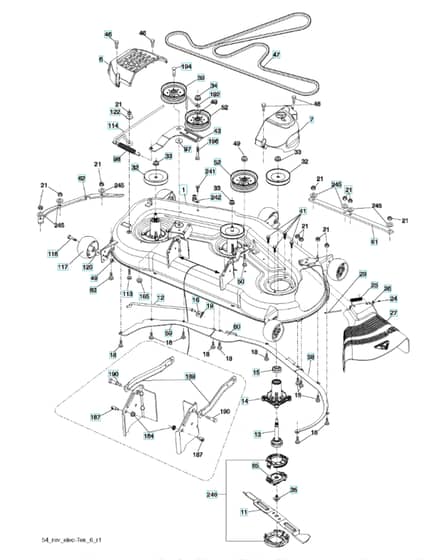

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
6	HV532 19 60-66 Out of stock	Cover	£35.44 £29.53
7	HV532 19 71-81 Out of stock	Cover	£32.32 £26.93
12	HV532 40 03-37 Out of stock	Tige Anti-Roulis	£14.53 £12.11
18	HV596 13 64-01 Out of stock	Bolt	£3.26 £2.72
19	HV532 19 42-08 Out of stock	Pin	£1.67 £1.39
24	HV532 10 53-04 Out of stock	Hub Cap	£3.35 £2.79
26	HV532 11 04-52 Out of stock	Nut	£2.16 £1.80
29	HV532 13 14-91 Out of stock	Shaft	£14.76 £12.30
34	HV596 32 26-01 Out of stock	Nut	£3.24 £2.70
35	HV584 30 93-01 In stock	Screw	£8.16 £6.80
41	HV584 95 39-01 Out of stock	Bolt	£5.60 £4.67
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
47	HV587 68 67-10 Out of stock	Belt	£94.44 £78.70
50	HV872 11 06-16 Out of stock	Bolt	£6.85 £5.71
58	HV532 18 73-42 Out of stock	Baffle	£21.12 £17.60
59	HV532 18 73-44 Out of stock	Baffle	£29.83 £24.86
60	HV532 18 76-07 Out of stock	Baffle	£31.08 £25.90
61	HV585 32 26-05 Out of stock	Reinforcement Plate	£37.80 £31.50
62	HV585 32 28-05 Out of stock	Reinforcement Plate	£9.95 £8.29
65	HV580 95 40-03 Out of stock	Blade Holder	£98.88 £82.40
97	HV532 17 85-15 In stock	Washer	£8.71 £7.26
98	HV532 19 61-05 Out of stock	Spring	£19.88 £16.57
113	HV872 11 05-08 Out of stock	Bolt	£3.48 £2.90
116	HV596 43 44-04 Out of stock	Bolt	£5.65 £4.71
117	HV532 17 48-73 Out of stock	Wheel	£19.82 £16.52
184	HV873 90 05-00 Out of stock	Nut	£2.60 £2.17
185	HV873 90 07-00 Out of stock	Nut	£4.86 £4.05
187	HV532 19 51-61 Out of stock	Stud	£2.86 £2.38
189	HV532 19 51-85 Out of stock	Arm	£32.32 £26.93
190	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
192	HV532 19 84-68 Out of stock	Belt Guide	£10.57 £8.81
194	HV874 49 07-36 Out of stock	Bolt	£8.71 £7.26
196	HV872 14 06-20 Out of stock	Bolt	£7.46 £6.22
241	HV532 15 29-27 Out of stock	Screw	£2.48 £2.07
242	HV532 41 55-98 Out of stock	Hose Coupling	£5.16 £4.30
246	HV586 63 85-01 Out of stock	Cap	£35.44 £29.53
