Husqvarna Gt48Xlsi - Drive

Name: Husqvarna Gt48Xlsi - Drive
SKU: gt48xlsi_drive-group
Price: 0.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Gt48Xlsi

Model Year -

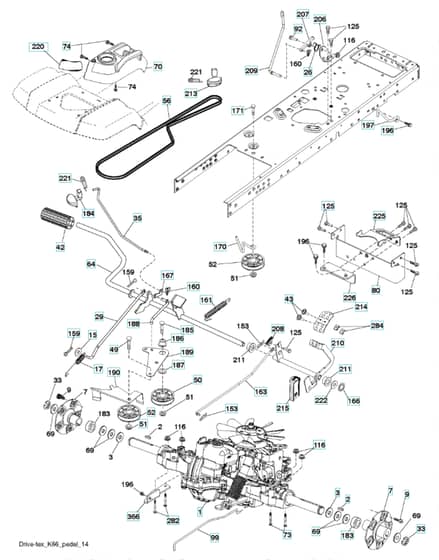

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
9	HV532 14 00-80 Available to backorder	Bolt	£7.12 £5.93
26	HV532 19 96-79 Available to backorder	Spring	£3.76 £3.13
29	HV532 40 72-45 Available to backorder	Rod.Brake.K66 Subs/2	£9.52 £7.93
33	HV812 00 00-53 Available to backorder	E-Clip	£0.92 £0.77
35	HV583 86 45-01 Available to backorder	Rod	£20.72 £17.27
43	HV874 18 04-12 Available to backorder	Screw	£2.58 £2.15
49	HV872 11 06-14 Available to backorder	Bolt	£7.12 £5.93
50	HV532 19 43-27 Available to backorder	Pulley	£43.18 £35.98
52	HV532 19 43-26 Available to backorder	Pulley	£42.46 £35.38
56	HV532 12 59-07 Available to backorder	Belt	£64.34 £53.62
73	HV874 49 05-44 Available to backorder	Screw	£7.12 £5.93
74	HV532 14 24-32 Available to backorder	Screw	£2.34 £1.95
99	HV532 41 57-44 Available to backorder	Rod	£11.42 £9.52
116	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
160	HV532 16 94-84 Available to backorder	Pin	£4.06 £3.38
161	HV532 10 57-09 Available to backorder	Spring	£16.49 £13.74
163	HV532 40 72-46 Available to backorder	Rod.Pedal.Control.K66.Subs/2	£36.22 £30.18
166	HV532 42 91-64 Available to backorder	Nut	£1.82 £1.52
167	HV532 40 52-57 Available to backorder	Latch	£5.82 £4.85
171	HV872 11 06-16 Available to backorder	Bolt	£7.12 £5.93
185	HV872 11 06-22 Available to backorder	Bolt	£8.40 £7.00
186	HV532 19 43-21 Available to backorder	Spacer	£14.22 £11.85
188	HV532 19 43-23 Available to backorder	Link	£7.86 £6.55
189	HV532 19 43-17 Available to backorder	Plate	£14.88 £12.40
196	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
197	HV585 65 86-01 Available to backorder	Clutch	£12.28 £10.23
206	HV532 44 85-96 Available to backorder	Bracket	£10.36 £8.63
208	HV532 19 78-69 Available to backorder	Support	£11.00 £9.17
209	HV532 19 95-92 Available to backorder	Rod	£14.22 £11.85
211	HV532 12 01-83 Available to backorder	Bearing	£6.23 £5.19
213	HV532 40 31-19 Available to backorder	Control	£14.22 £11.85
214	HV532 41 68-63 Available to backorder	Pedal.Forward.Husqvarna.Dealer	£36.22 £30.18
215	HV532 40 17-23 Available to backorder	Pedal	£36.22 £30.18
221	HV532 40 31-87 Available to backorder	Spring	£3.88 £3.23
222	HV879 21 20-10 Available to backorder	Washer	£5.68 £4.73
226	HV532 40 71-09 Available to backorder	Bracket	£20.06 £16.72
284	HV532 41 76-93 Available to backorder	Nut	£2.84 £2.37
