Husqvarna Gt2254 - Mower Deck & Cutting Deck

Name: Husqvarna Gt2254 - Mower Deck & Cutting Deck
SKU: gt2254_2005_05_mower_deck_cutting_deck-group
Price: 1.74 GBP
Availability: InStock

Part No. gt2254_2005_05_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Gt2254 - Mower Deck & Cutting Deck

Description

Husqvarna Gt2254

Model Year - 2005-05

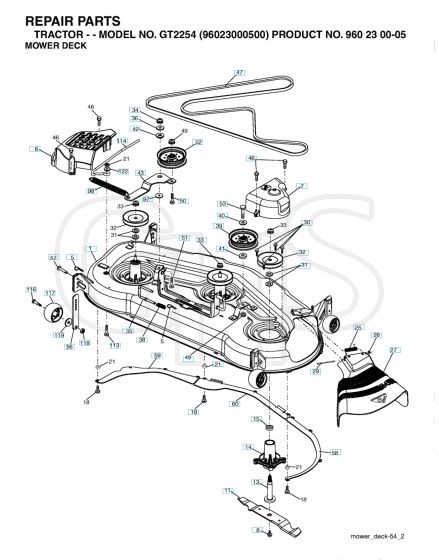

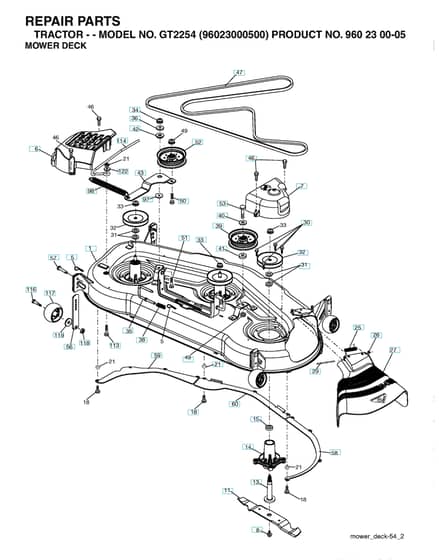

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
13	HV532 18 72-91 Available to backorder	Shaft	£62.16 £51.80
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
18	HV596 13 64-01 Available to backorder	Bolt	£4.16 £3.47
26	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
29	HV532 13 14-91 In stock	Shaft	£10.15 £8.46
31	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
32	HV532 17 34-36 Available to backorder	Pulley	£41.35 £34.46
34	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
50	HV872 11 06-16 Available to backorder	Bolt	£7.06 £5.88
58	HV532 18 73-42 Available to backorder	Baffle	£21.78 £18.15
59	HV532 18 73-44 Available to backorder	Baffle	£30.76 £25.63
60	HV532 18 76-07 Available to backorder	Baffle	£32.04 £26.70
113	HV872 11 05-08 Available to backorder	Bolt	£3.59 £2.99
116	HV596 43 44-04 Available to backorder	Bolt	£5.48 £4.57
117	HV532 17 48-73 Available to backorder	Wheel	£20.74 £17.28
