Husqvarna Gt2254 - Chassis & Enclosures

Husqvarna Gt2254 - Chassis & Enclosures

Part No. gt2254_2005_05_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

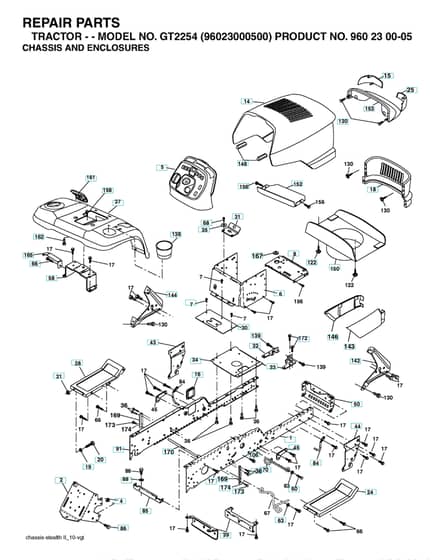

Husqvarna Gt2254 - Chassis & Enclosures

Husqvarna Gt2254 - Chassis & Enclosures

Description

Husqvarna Gt2254

Model Year - 2005-05

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	17		HV817 00 06-12 Available to backorder	Screw		£5.78 £4.82
	18		HV532 18 28-73 Available to backorder	Cala*Rpl.Par 532175289418		£87.36 £72.80
	20		HV874 78 06-16 Available to backorder	Bolt		£6.29 £5.24
	60		HV817 06 06-20 Available to backorder	Screw		£5.75 £4.79
	66		HV817 49 06-08 Available to backorder	Screw		£5.24 £4.37
	68		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	88		HV810 04 07-00 Available to backorder	Washer		£3.12 £2.60
	106		HV817 58 05-20 Available to backorder	Bolt		£5.24 £4.37
	158		HV817 67 06-08 Available to backorder	Screw		£5.24 £4.37
	162		HV532 14 24-32 Available to backorder	Screw		£2.30 £1.92
	173		HV874 78 05-12 Available to backorder	Screw		£2.99 £2.49
	174		HV810 04 05-00 Available to backorder	Washer		£1.78 £1.48

Description

Husqvarna Gt2254

Model Year - 2005-05

Chassis & Enclosures - Parts Diagram
