Husqvarna Gt200 - Drive

Husqvarna Gt200 - Drive

Part No. gt200_1997_01_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Gt200 - Drive

Husqvarna Gt200 - Drive

Description

Husqvarna Gt200

Model Year - 1997-01

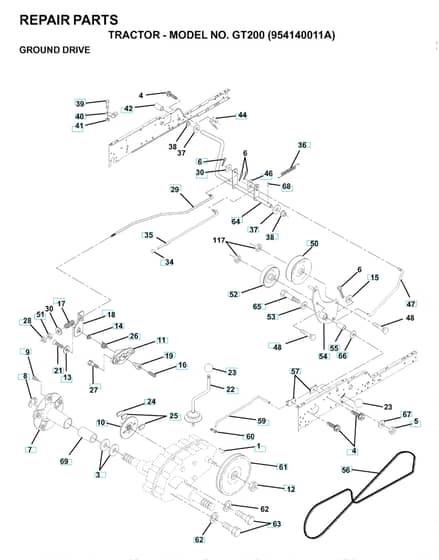

Drive - Parts Diagram

Ref.		Img.	Part No.	Details
	-1		HV874 76 04-12 Available to backorder	Bolt		£2.00 £1.67
	4		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	5		HV596 32 26-01 Available to backorder	Nut		£3.83 £3.19
	9		HV532 14 00-80 Available to backorder	Bolt		£7.06 £5.88
	27		HV817 49 05-28 Available to backorder	Screw		£5.12 £4.27
	34		HV532 07 16-73 Available to backorder	Cover		£3.65 £3.04
	37		HV532 12 17-49 In stock	Washer		£2.82 £2.35
	48		HV872 11 06-14 Available to backorder	Bolt		£7.06 £5.88
	52		HV532 13 91-23 Available to backorder	Pulley		£22.09 £18.41
	56		HV532 13 71-53 Available to backorder	V-Belt		£61.39 £51.16
	62		HV810 04 07-00 Available to backorder	Washer		£3.12 £2.60
	66		HV532 14 02-96 Available to backorder	Washer		£7.86 £6.55

Description

Husqvarna Gt200

Model Year - 1997-01

Drive - Parts Diagram
