Husqvarna Gt200 - Chassis & Enclosures

Husqvarna Gt200 - Chassis & Enclosures

Part No. gt200_1997_01_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Gt200 - Chassis & Enclosures

Husqvarna Gt200 - Chassis & Enclosures

Description

Husqvarna Gt200

Model Year - 1997-01

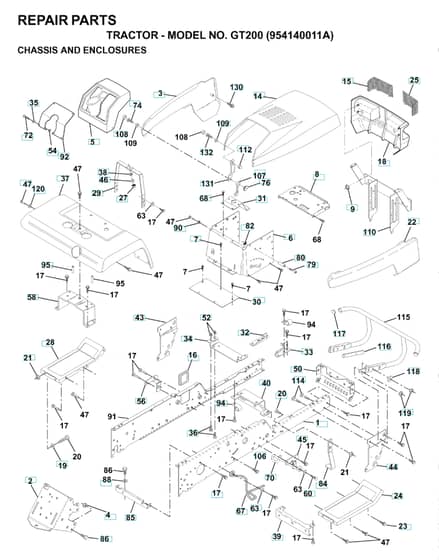

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	20		HV874 76 06-16 Available to backorder	Bolt		£2.09 £1.74
	36		HV874 78 05-12 Available to backorder	Screw		£2.99 £2.49
	38		HV596 02 98-01 Available to backorder	Washer		£2.44 £2.03
	47		HV817 49 06-08 Available to backorder	Screw		£5.24 £4.37
	52		HV596 04 05-01 Available to backorder	Lock Nut		£2.03 £1.69
	68		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	80		HV532 00 72-06 Available to backorder	Spacer		£2.69 £2.24
	88		HV810 04 07-00 Available to backorder	Washer		£3.12 £2.60
	107		HV532 10 98-08 Available to backorder	Latch		£9.12 £7.60
	119		HV596 32 26-01 Available to backorder	Nut		£3.83 £3.19

Description

Husqvarna Gt200

Model Year - 1997-01

Chassis & Enclosures - Parts Diagram
