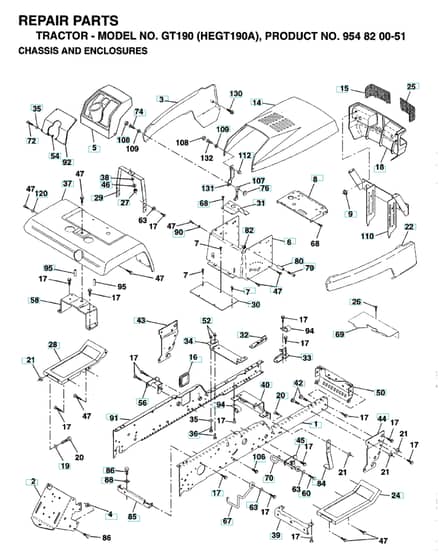

Husqvarna Gt190 - Chassis & Enclosures

Husqvarna Gt190 - Chassis & Enclosures

Description

Husqvarna Gt190

Model Year - 1996-01

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	20		HV874 76 06-16 Available to backorder	Bolt		£2.09 £1.74
	21		HV596 32 26-01 Available to backorder	Nut		£3.83 £3.19
	36		HV874 78 05-12 Available to backorder	Screw		£2.99 £2.49
	38		HV596 02 98-01 Available to backorder	Washer		£2.44 £2.03
	47		HV817 49 06-08 Available to backorder	Screw		£5.24 £4.37
	68		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	80		HV532 00 72-06 Available to backorder	Spacer		£2.69 £2.24
	88		HV810 04 07-00 Available to backorder	Washer		£3.12 £2.60
	107		HV532 10 98-08 Available to backorder	Latch		£9.12 £7.60

Description

Husqvarna Gt190

Model Year - 1996-01

Chassis & Enclosures - Parts Diagram
