Husqvarna FS 7000 D Tier 4 - 967207953 - Gear Box 3-Speed 01

Name: Husqvarna FS 7000 D Tier 4 - 967207953 - Gear Box 3-Speed 01
SKU: FS_7000_D_Tier_4_967207953_VD_078145_HighResPng-group
Price: 1.1 GBP
Availability: InStock

Part No. FS_7000_D_Tier_4_967207953_VD_078145_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna FS 7000 D Tier 4 - 967207953 - Gear Box 3-Speed 01

Description

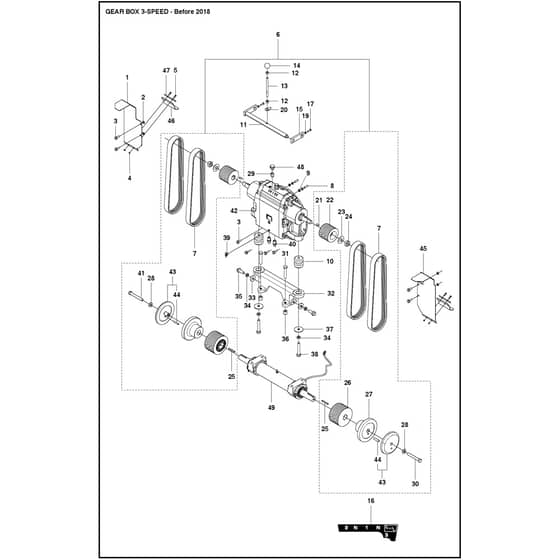

Husqvarna FS 7000 D Tier 4 - 967207953 - Gear Box 3-Speed - Parts Diagram

	Part No.	Details
1	HV581 02 08-01 Available to backorder	Belt Guard (Right Side)	£146.64 £122.20
2	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
3	HV585 98 04-01 Available to backorder	Screw Ehhfm	£6.55 £5.46
4	HV732 25 16-01 Available to backorder	Hexagon Locking Nut	£2.05 £1.71
5	HV586 12 02-01 Available to backorder	Screw Ehhfm	£4.75 £3.96
7	HV504 11 97-06 Available to backorder	Drive Belt (26")	£97.20 £81.00
7	HV504 11 97-07 Available to backorder	Drive Belt (30")	£85.44 £71.20
7	HV541 20 08-47 Available to backorder	V-Belt (36")	£95.04 £79.20
7	HV504 11 97-01 Available to backorder	Drive Belt (42")	£99.72 £83.10
8	HV542 20 64-16 Available to backorder	Stud	£4.45 £3.71
9	HV731 43 20-01 Available to backorder	Hexagon Thin Nut	£1.79 £1.49
10	HV587 15 01-01 Available to backorder	Antivibration Element	£24.83 £20.69
11	HV586 85 75-01 Available to backorder	Rod	£261.36 £217.80
11	HV598 46 99-01 Available to backorder	Rod	£387.36 £322.80
12	HV539 99 02-58 Available to backorder	Nut	£5.02 £4.18
13	HV598 46 96-01 Available to backorder	Handle	£72.48 £60.40
14	HV542 16 32-14 Available to backorder	Ball	£4.18 £3.48
15	HV586 96 49-01 Available to backorder	Arm	£107.52 £89.60
16	HV585 29 49-01 Available to backorder	Decal	£20.96 £17.47
17	HV505 77 25-01 Available to backorder	Screw	£1.32 £1.10
18	HV725 24 49-51 Available to backorder	Screw Ehhm	£3.32 £2.77
19	HV542 02 07-77 Available to backorder	Washer	£1.34 £1.12
20	HV586 86 52-01 Available to backorder	Pointer	£17.69 £14.74
21	HV542 16 46-32 Available to backorder	Key	£2.69 £2.24
67	HV596 53 77-01 Available to backorder	Pointer	£527.40 £439.50
