Husqvarna FS 7000 D - 967944703 - Cowl

Name: Husqvarna FS 7000 D - 967944703 - Cowl
SKU: FS_7000_D_967944703_PA_544833_HighResPng-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

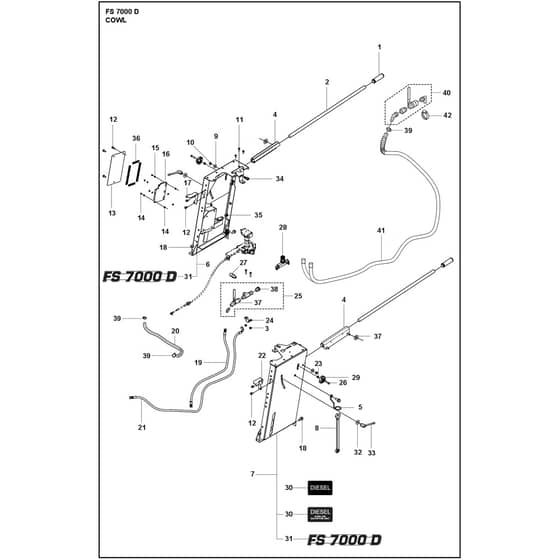

Husqvarna FS 7000 D - 967944703 - Cowl - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV542 13 95-68 Available to backorder	Grip	£3.22 £2.68
2	HV539 30 03-40 Available to backorder	Handlebar	£84.76 £70.63
3	HV542 16 75-55 Available to backorder	Nut	£2.62 £2.18
4	HV586 92 77-01 Available to backorder	Handle	£102.88 £85.73
5	HV578 10 73-01 Available to backorder	Tool Holder	£53.54 £44.62
8	HV504 62 64-03 Available to backorder	Wrench	£127.34 £106.12
9	HV734 11 78-01 Available to backorder	Washer	£3.62 £3.02
10	HV732 25 22-01 Available to backorder	Hexagon Locking Nut	£5.96 £4.97
11	HV725 64 53-01 Available to backorder	Screw Ihcsfm	£1.28 £1.07
12	HV585 17 39-01 Available to backorder	Screw Ehhfm	£6.32 £5.27
13	HV581 04 61-01 Available to backorder	Hatch	£32.76 £27.30
14	HV731 23 16-01 Available to backorder	Hexagon Nut	£1.50 £1.25
15	HV734 11 52-01 Available to backorder	Washer	£2.34 £1.95
16	HV581 33 36-01 Available to backorder	Electrical System	£340.20 £283.50
17	HV586 61 94-01 Available to backorder	Bracket	£70.58 £58.82
18	HV585 23 59-01 Available to backorder	Screw Ehhfm	£4.78 £3.98
19	HV584 21 69-01 Available to backorder	Hydraulic Hose	£49.68 £41.40
21	HV584 21 67-01 Available to backorder	Hydraulic Hose	£79.98 £66.65
22	HV586 61 97-01 Available to backorder	Bracket	£79.52 £66.27
23	HV731 71 18-51 Available to backorder	Hexagon Nut	£2.94 £2.45
24	HV581 19 22-01 Available to backorder	Bracket	£22.18 £18.48
25	HV586 02 24-02 Available to backorder	Connector	£151.44 £126.20
26	HV725 24 57-71 Available to backorder	Screw Ehhm	£5.96 £4.97
27	HV542 17 87-24 Available to backorder	Switch	£196.20 £163.50
28	HV586 41 01-01 Available to backorder	Control Valve	£178.72 £148.93
29	HV504 56 93-01 Available to backorder	Turning Knob	£5.38 £4.48
30	HV585 37 04-01 Available to backorder	Decal (US Only)	£16.78 £13.98
30	HV542 18 10-59 Available to backorder	Decal (CE Only)	£18.46 £15.38
31	HV585 25 46-01 Available to backorder	Decal	£17.38 £14.48
32	HV542 02 07-45 Available to backorder	Washer	£4.46 £3.72
33	HV585 59 46-01 Available to backorder	Lever	£27.22 £22.68
34	HV584 13 66-01 Available to backorder	Harness	£186.72 £155.60
35	HV583 95 95-01 Available to backorder	Clamp	£3.40 £2.83
36	HV586 60 98-01 Available to backorder	Seal	£3.72 £3.10
37	HV582 69 11-01 Available to backorder	Valve	£65.69 £54.74
38	HV542 04 56-42 Available to backorder	Washer	£9.24 £7.70
40	HV597 47 25-01 Available to backorder	Connector	£122.82 £102.35
42	HV542 20 61-93 Available to backorder	Hose Clamp	£3.94 £3.28
