Husqvarna FS 600 E - 970492902 - Base Plate

Name: Husqvarna FS 600 E - 970492902 - Base Plate
SKU: FS_600_E_970492902_HR_278323_HighResPng-group
Price: 0.55 GBP
Availability: InStock

Part No. FS_600_E_970492902_HR_278323_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna FS 600 E - 970492902 - Base Plate

Description

Husqvarna FS 600 E - 970492902 - Base Plate - Parts Diagram

	Part No.	Details
2	HV585 98 04-01 Available to backorder	Screw Ehhfm	£6.55 £5.46
17	HV542 13 92-73 Available to backorder	Ball Bearing	£12.95 £10.79
18	HV735 31 40-10 Available to backorder	Circlip	£5.78 £4.82
19	HV541 20 81-94 Available to backorder	Spacer	£7.72 £6.43
20	HV732 25 22-01 Available to backorder	Hexagon Locking Nut	£4.84 £4.03
24	HV732 21 18-01 In stock	Hexagon Locking Nut	£2.38 £1.98
26	HV504 20 45-01 Available to backorder	Nipple	£0.66 £0.55
27	HV585 97 52-01 Available to backorder	Screw Ehhfm	£5.98 £4.98

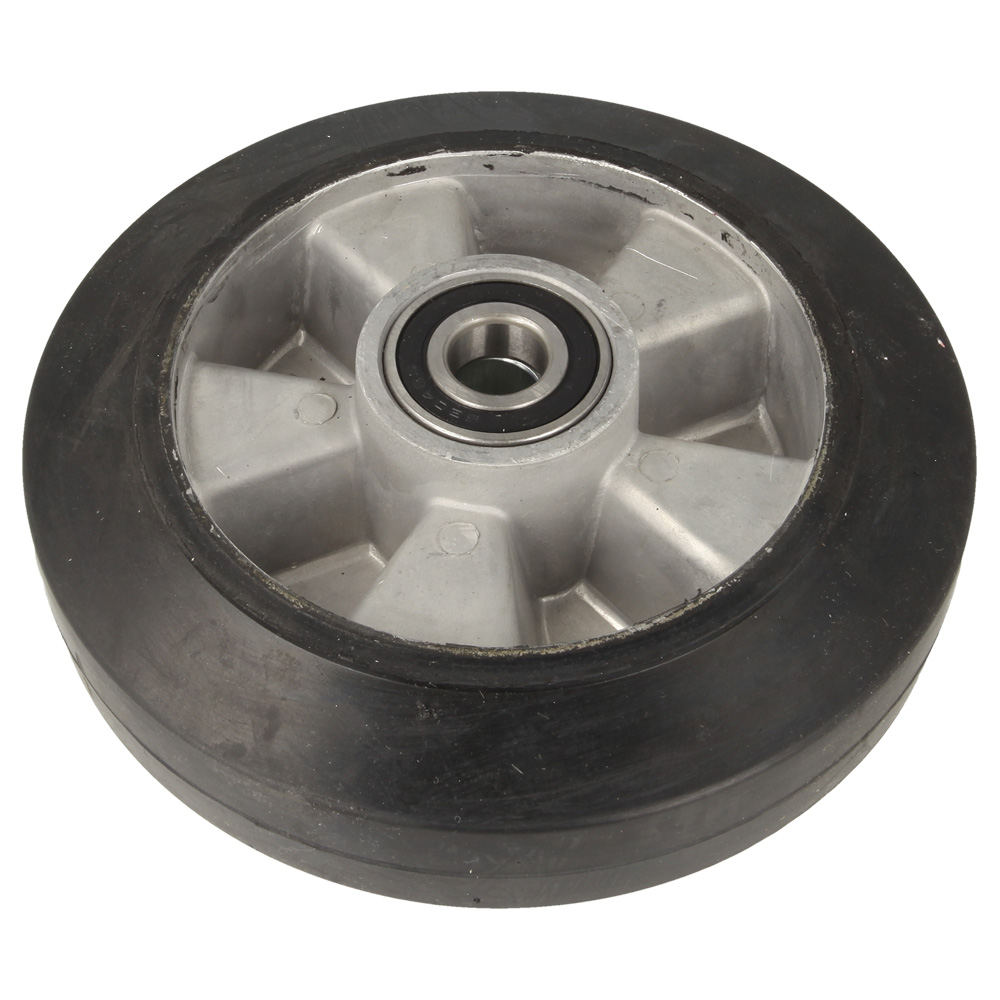

28	HV543 04 59-51 In stock	Wheel	£34.60 £28.83
29	HV734 11 74-41 Available to backorder	Washer	£4.69 £3.91
30	HV725 24 91-71 Available to backorder	Screw Ehhm	£3.10 £2.58
32	HV732 25 20-01 Available to backorder	Hexagon Locking Nut	£4.36 £3.63
34	HV735 11 73-01 Available to backorder	Spring Washer	£3.29 £2.74
35	HV725 24 99-71 Available to backorder	Screw Ehhm	£3.54 £2.95
36	HV731 23 20-01 Available to backorder	Hexagon Nut	£3.43 £2.86
38	HV543 04 19-59 Available to backorder	Clamp	£10.26 £8.55
39	HV543 04 02-17 Available to backorder	Tool	£1.34 £1.12

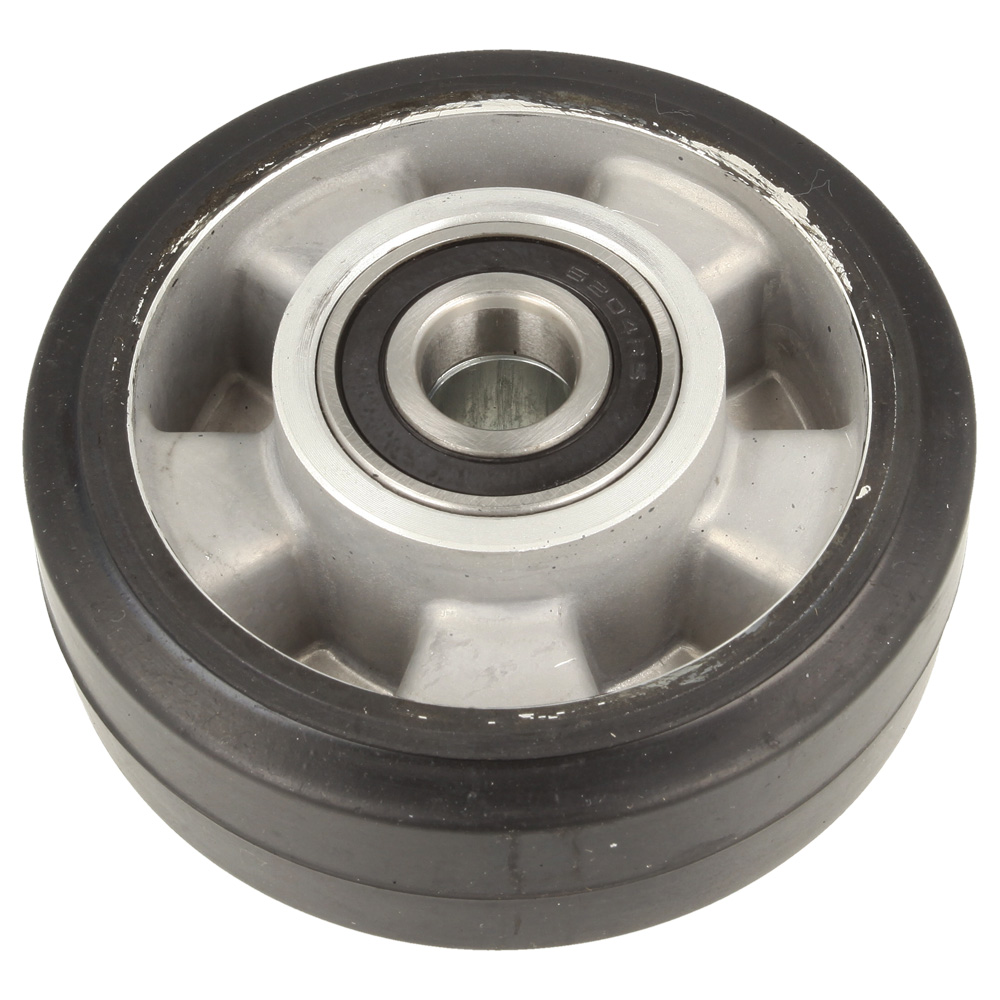

40	HV543 04 59-49 Available to backorder	Wheel	£37.72 £31.43

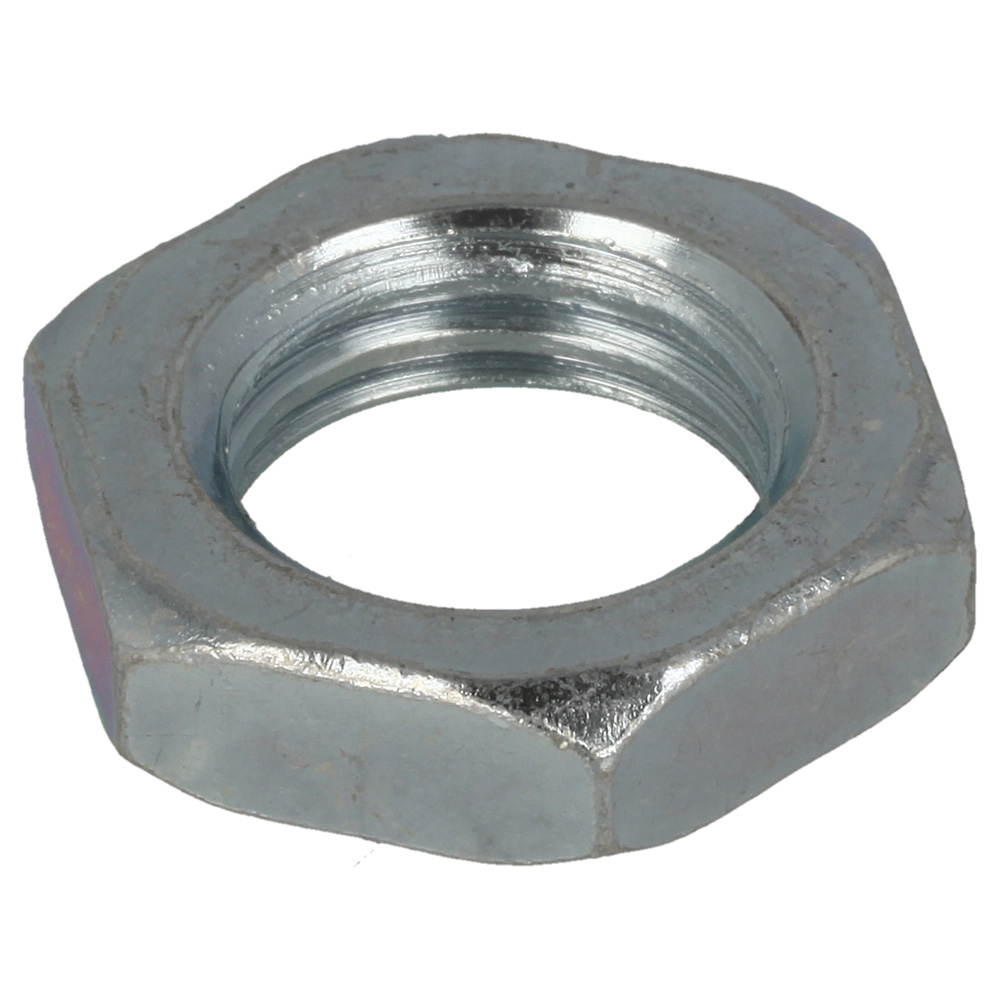

42	HV543 04 47-57 Available to backorder	Nut	£1.55 £1.29
