Husqvarna FS 524 - 967046102 - Frame

Name: Husqvarna FS 524 - 967046102 - Frame
SKU: FS_524_967046102_IS_463898_HighResPng-group
Price: 1.49 GBP
Availability: InStock

Part No. FS_524_967046102_IS_463898_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

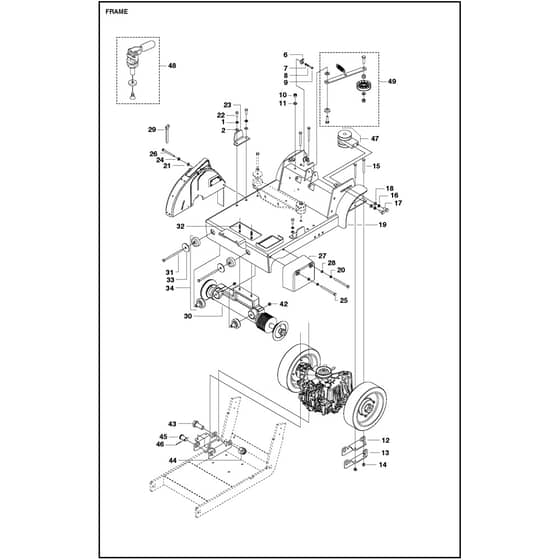

Husqvarna FS 524 - 967046102 - Frame - Parts Diagram

	Part No.	Details
3	HV725 24 95-71 Available to backorder	Screw Ehhm	£7.06 £5.88
4	HV504 11 10-02 Available to backorder	Blade Bushing	£7.14 £5.95
5	HV504 11 13-02 Available to backorder	Spacer	£1.94 £1.62
7	HV734 11 52-01 Available to backorder	Washer	£2.30 £1.92
8	HV735 11 53-01 Available to backorder	Washer	£3.01 £2.51
9	HV725 23 70-71 Available to backorder	Screw Ehhm	£2.56 £2.13
14	HV732 21 18-01 In stock	Hexagon Locking Nut	£2.38 £1.98
15	HV725 24 67-51 Available to backorder	Screw Ehhm	£7.70 £6.42
16	HV735 11 73-01 Available to backorder	Spring Washer	£3.29 £2.74
17	HV725 24 91-71 Available to backorder	Screw Ehhm	£3.10 £2.58
18	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
19	HV542 20 41-40 Available to backorder	Base	£268.44 £223.70
22	HV725 24 53-71 Available to backorder	Screw Ehhm	£4.46 £3.72
23	HV542 20 41-85 Available to backorder	Bracket	£60.22 £50.18
24	HV735 11 64-01 Available to backorder	Spring Washer	£3.59 £2.99
26	HV725 24 71-71 Available to backorder	Bolt	£2.69 £2.24
28	HV734 11 63-01 In stock	Washer	£2.63 £2.19
29	HV543 04 58-91 Available to backorder	Wrench	£6.47 £5.39
31	HV542 18 44-55 Available to backorder	Hhcs. M10X1.5X130mm Z.P	£2.99 £2.49
32	HV598 94 13-01 Available to backorder	Stud	£11.03 £9.19
33	HV542 20 21-06 Available to backorder	Washer	£1.79 £1.49
34	HV542 16 11-96 Available to backorder	Isolator	£39.56 £32.97
42	HV732 25 20-01 Available to backorder	Hexagon Locking Nut	£4.36 £3.63
47	HV504 73 66-03 Available to backorder	Pulley	£142.80 £119.00
48	HV596 87 44-01 Available to backorder	Parking Brake	£65.16 £54.30
49	HV596 96 89-01 Available to backorder	Transmission	£94.44 £78.70
