Husqvarna FS 524 - 967046102 - Engine & Idler

Name: Husqvarna FS 524 - 967046102 - Engine & Idler
SKU: FS_524_967046102_WK_267205_HighResPng-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna FS 524 - 967046102 - Engine & Idler

Description

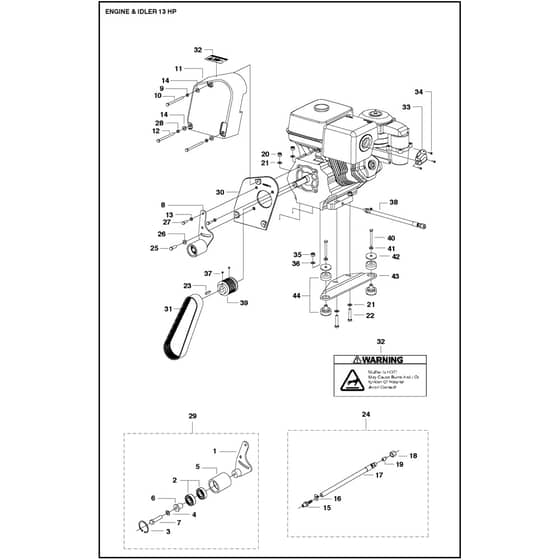

Husqvarna FS 524 - 967046102 - Engine & Idler - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV541 20 81-90 Available to backorder	Bracket	£21.54 £17.95
2	HV542 13 92-73 Available to backorder	Ball Bearing	£13.40 £11.17
3	HV735 31 40-10 Available to backorder	Circlip	£5.82 £4.85
4	HV735 11 78-01 Available to backorder	Washer	£1.40 £1.17
5	HV541 20 81-95 Available to backorder	Sheave	£55.38 £46.15
6	HV541 20 81-94 Available to backorder	Spacer	£7.98 £6.65
7	HV725 25 42-51 Available to backorder	Screw Ehhm	£9.06 £7.55
10	HV725 24 71-71 Available to backorder	Bolt	£2.78 £2.32
11	HV542 20 21-22 Available to backorder	Belt Guard	£94.20 £78.50
12	HV725 24 73-51 Available to backorder	Screw Ehhm	£3.36 £2.80
14	HV734 11 63-01 In stock	Washer	£2.54 £2.12
22	HV725 25 01-51 Available to backorder	Screw Ehhm	£7.76 £6.47
23	HV539 91 27-57 Available to backorder	Key	£4.78 £3.98
26	HV543 04 47-32 Available to backorder	Washer	£1.40 £1.17
28	HV735 11 64-01 Available to backorder	Spring Washer	£3.62 £3.02
29	HV541 20 81-96 Available to backorder	Sheave	£100.88 £84.07
31	HV542 20 21-50 Available to backorder	Drive Belt	£58.00 £48.33
32	HV542 16 90-65 Available to backorder	Decal	£2.46 £2.05
33	HV543 04 78-41 Available to backorder	Deflector	£6.78 £5.65
35	HV732 25 20-01 Available to backorder	Hexagon Locking Nut	£4.40 £3.67
36	HV734 11 72-01 Available to backorder	Washer	£2.02 £1.68
37	HV542 13 97-68 Available to backorder	Screw	£1.40 £1.17
38	HV542 20 21-51 Available to backorder	Oil	£19.84 £16.53
40	HV725 25 05-51 Available to backorder	Screw Ehhm	£7.38 £6.15
41	HV735 11 73-01 Available to backorder	Spring Washer	£3.38 £2.82
42	HV542 20 21-06 Available to backorder	Washer	£1.84 £1.53
43	HV542 20 41-79 Available to backorder	Plate	£21.38 £17.82
44	HV542 16 11-96 Available to backorder	Isolator	£40.92 £34.10
