Husqvarna FS 5000 D - 967207340 - Base Plate

Name: Husqvarna FS 5000 D - 967207340 - Base Plate
SKU: FS_5000_D_967207340_TL_421985_HighResPng-group
Price: 1.1 GBP
Availability: InStock

Part No. FS_5000_D_967207340_TL_421985_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna FS 5000 D - 967207340 - Base Plate

Description

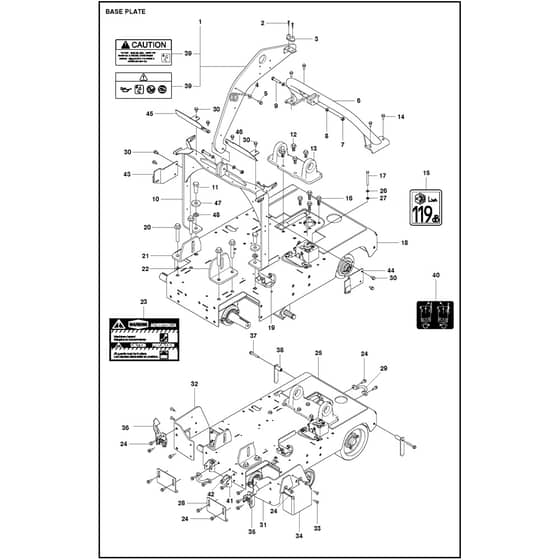

Husqvarna FS 5000 D - 967207340 - Base Plate - Parts Diagram

	Part No.	Details
1	HV586 83 06-01 Available to backorder	Plate	£370.44 £308.70
2	HV502 02 35-01 Available to backorder	Screw Ihcsfm	£1.94 £1.62
3	HV501 85 79-01 Available to backorder	Clamp	£71.64 £59.70
4	HV505 18 91-01 Available to backorder	Bracket	£15.34 £12.78
5	HV585 97 54-01 Available to backorder	Screw Ehhfm	£4.45 £3.71
6	HV583 84 42-01 Available to backorder	Bracket	£351.12 £292.60
7	HV732 25 20-01 Available to backorder	Hexagon Locking Nut	£4.36 £3.63
8	HV734 11 72-01 Available to backorder	Washer	£1.98 £1.65
9	HV725 25 01-76 Available to backorder	Screw Ehhm	£4.33 £3.61
10	HV586 66 66-01 Available to backorder	Bracket	£651.34 £542.78
11	HV542 18 83-24 Available to backorder	Bolt	£4.88 £4.07
12	HV576 65 48-03 Available to backorder	Screw Ehhfm	£1.32 £1.10
14	HV585 98 04-01 Available to backorder	Screw Ehhfm	£6.55 £5.46
15	HV542 19 60-29 Available to backorder	Decal	£21.26 £17.72
16	HV576 65 48-04 Available to backorder	Screw Ehhfm	£9.82 £8.18
17	HV725 24 69-51 Available to backorder	Screw Ehhm	£5.78 £4.82
18	HV579 32 97-01 Available to backorder	Baseplate	£1,854.38 £1,545.32
19	HV583 95 95-01 Available to backorder	Clamp	£3.52 £2.93
20	HV581 24 94-04 Available to backorder	Screw Ehhfm	£52.79 £43.99
22	HV579 72 72-01 Available to backorder	Mount (Left Side)	£108.24 £90.20
23	HV542 17 62-23 Available to backorder	Decal (US Only)	£5.38 £4.48
25	HV581 16 73-01 Available to backorder	Insulator	£52.79 £43.99
26	HV734 11 63-01 In stock	Washer	£2.63 £2.19
27	HV735 11 64-01 Available to backorder	Spring Washer	£3.59 £2.99
28	HV588 83 19-01 Available to backorder	Guard	£75.12 £62.60
29	HV504 58 03-02 Available to backorder	Loop	£13.39 £11.16
30	HV585 97 56-01 Available to backorder	Screw Ehhfm	£4.01 £3.34
31	HV588 73 28-01 Available to backorder	Bracket	£464.40 £387.00
32	HV585 43 25-01 Available to backorder	Bracket (Right Side)	£197.40 £164.50
33	HV725 64 93-51 Available to backorder	Screw Ihcsfm	£5.51 £4.59
34	HV579 36 21-01 Available to backorder	Bracket	£69.96 £58.30
35	HV581 10 61-01 Available to backorder	Lock (Left Side)	£73.56 £61.30
36	HV581 10 60-01 Available to backorder	Lock (Right Side)	£68.16 £56.80
37	HV581 24 33-01 Available to backorder	Screw Ehhfm	£4.75 £3.96
38	HV581 11 52-01 Available to backorder	Pointer	£66.00 £55.00
39	HV586 46 75-01 Available to backorder	Decal (CE Only)	£39.12 £32.60
39	HV521 88 53-02 Available to backorder	Decal (US Only)	£15.70 £13.08
40	HV542 19 94-35 Available to backorder	Decal	£20.22 £16.85
41	HV579 35 94-01 Available to backorder	Bracket	£34.21 £28.51
42	HV585 97 31-01 Available to backorder	Screw Ehhfm	£5.08 £4.23
43	HV586 14 13-01 Available to backorder	Bracket (Right Side)	£73.32 £61.10
44	HV586 14 11-01 Available to backorder	Bracket (Left Side)	£73.32 £61.10
45	HV586 00 41-01 Available to backorder	Protection (Right Side)	£115.80 £96.50
46	HV586 00 42-01 Available to backorder	Protection (Left Side)	£107.52 £89.60
47	HV542 16 03-93 Available to backorder	Washer	£4.45 £3.71
48	HV539 99 03-33 Available to backorder	Washer	£3.77 £3.14
