Husqvarna FS 413 - 965150102 - Control Console

Description

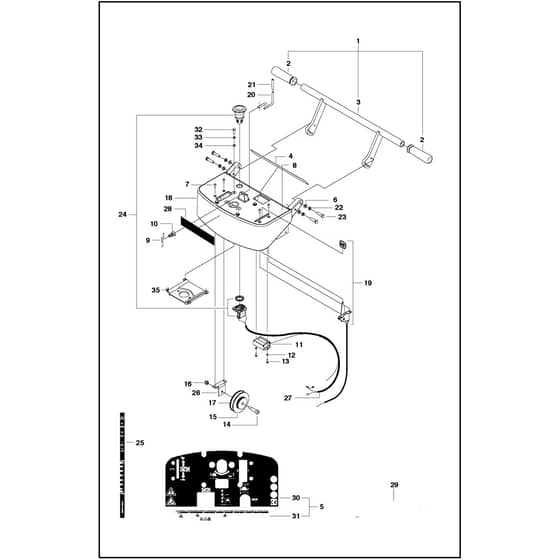

Husqvarna FS 413 - 965150102 - Control Console - Parts Diagram

	Part No.	Details
1	HV504 03 12-09 Available to backorder	Handle	£40.79 £33.99
2	HV542 13 95-68 Available to backorder	Grip	£3.12 £2.60
3	HV504 03 12-07 Available to backorder	Handle	£44.17 £36.81
6	HV734 11 63-01 In stock	Washer	£2.63 £2.19
7	HV724 13 29-51 Available to backorder	Screw Crpanm	£1.69 £1.41
9	HV721 61 43-01 Available to backorder	Pin	£0.66 £0.55
10	HV542 20 41-13 Available to backorder	Spring	£1.34 £1.12
11	HV539 30 05-56 Available to backorder	Hour Meter	£185.40 £154.50
12	HV735 11 36-01 Available to backorder	Spring Washer 4.1X7.1	£2.30 £1.92
13	HV725 22 91-71 Available to backorder	Screw Ehhm	£1.56 £1.30
14	HV541 20 82-79 Available to backorder	Bolt	£3.59 £2.99
15	HV542 20 21-63 Available to backorder	Wheel	£44.03 £36.69
16	HV732 21 18-01 In stock	Hexagon Locking Nut	£2.38 £1.98
18	HV586 46 90-01 Available to backorder	Console	£445.32 £371.10
19	HV542 20 22-36 Available to backorder	Throttle	£29.76 £24.80
20	HV542 20 23-34 Available to backorder	Locking Pin	£53.24 £44.37
21	HV542 20 21-69 Available to backorder	Cap	£1.34 £1.12
22	HV735 11 64-01 Available to backorder	Spring Washer	£3.59 £2.99
23	HV725 24 57-71 Available to backorder	Screw Ehhm	£5.78 £4.82
24	HV582 10 15-01 Available to backorder	Stop Switch	£82.68 £68.90
25	HV542 19 05-88 Available to backorder	Decal	£1.32 £1.10
26	HV542 20 21-64 Available to backorder	Bracket	£5.29 £4.41
27	HV502 30 48-17 Available to backorder	Cord	£10.58 £8.82
29	HV542 19 07-33 Available to backorder	Decal	£12.20 £10.17
31	HV542 19 06-38 Available to backorder	Decal	£13.99 £11.66
32	HV725 23 70-71 Available to backorder	Screw Ehhm	£2.56 £2.13
33	HV735 11 53-01 Available to backorder	Washer	£3.01 £2.51
34	HV734 11 52-01 Available to backorder	Washer	£2.30 £1.92
35	HV502 85 62-05 Available to backorder	Bracket	£18.60 £15.50
