Husqvarna FS 413 - 965150102 - Blade Guard - 20"

Name: Husqvarna FS 413 - 965150102 - Blade Guard - 20"
SKU: FS_413_965150102_SO_251743_HighResPng-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna FS 413 - 965150102 - Blade Guard - 20"

Description

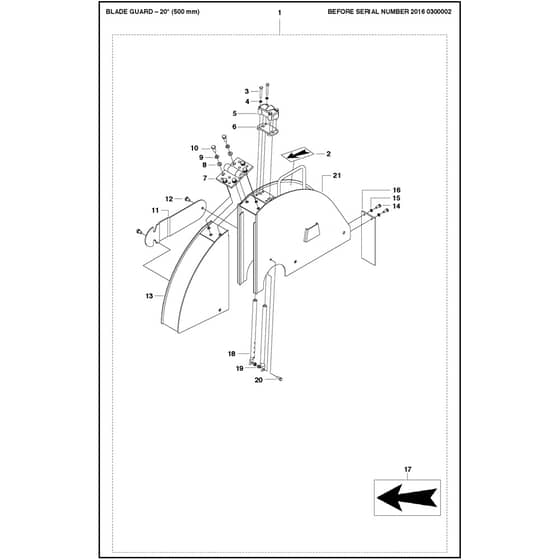

Husqvarna FS 413 - 965150102 - Blade Guard - 20" - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV501 12 59-01 Available to backorder	Blade Guard	£542.53 £452.11
4	HV735 11 53-01 Available to backorder	Washer	£3.12 £2.60
5	HV542 13 90-45 Available to backorder	Axe	£140.24 £116.87
6	HV542 13 90-51 Available to backorder	Joint	£10.78 £8.98
7	HV590 34 44-01 Available to backorder	Hinge	£135.23 £112.69
8	HV734 11 63-01 In stock	Washer	£2.54 £2.12
9	HV735 11 64-01 Available to backorder	Spring Washer	£3.62 £3.02
10	HV725 24 51-71 Available to backorder	Screw Ehhm	£4.54 £3.78
11	HV590 52 07-01 Available to backorder	Cover	£23.54 £19.62
12	HV725 24 47-71 Available to backorder	Screw Ehhm	£3.24 £2.70
13	HV501 12 56-01 Available to backorder	Blade Guard	£206.05 £171.71
15	HV734 11 64-01 Available to backorder	Washer	£2.34 £1.95
16	HV542 20 40-64 Available to backorder	Flap	£7.84 £6.53
17	HV543 85 00-37 Available to backorder	Sticker	£1.40 £1.17
18	HV501 12 58-01 Available to backorder	Tube	£9.76 £8.13
19	HV732 25 16-01 Available to backorder	Hexagon Locking Nut	£2.06 £1.72
20	HV725 23 68-71 Available to backorder	Screw Ehhm	£2.34 £1.95
