Husqvarna FS 400 LV - 967796501 - Frame

Name: Husqvarna FS 400 LV - 967796501 - Frame
SKU: FS_400_LV_967796501_FA_322307_HighResPng-group
Price: 0.64 GBP
Availability: InStock

Part No. FS_400_LV_967796501_FA_322307_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

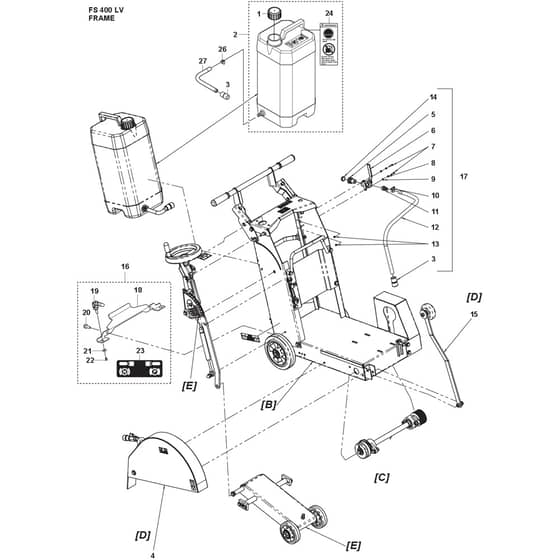

Husqvarna FS 400 LV - 967796501 - Frame - Parts Diagram

	Part No.	Details
1	HV543 04 55-99 Available to backorder	Plug	£4.45 £3.71

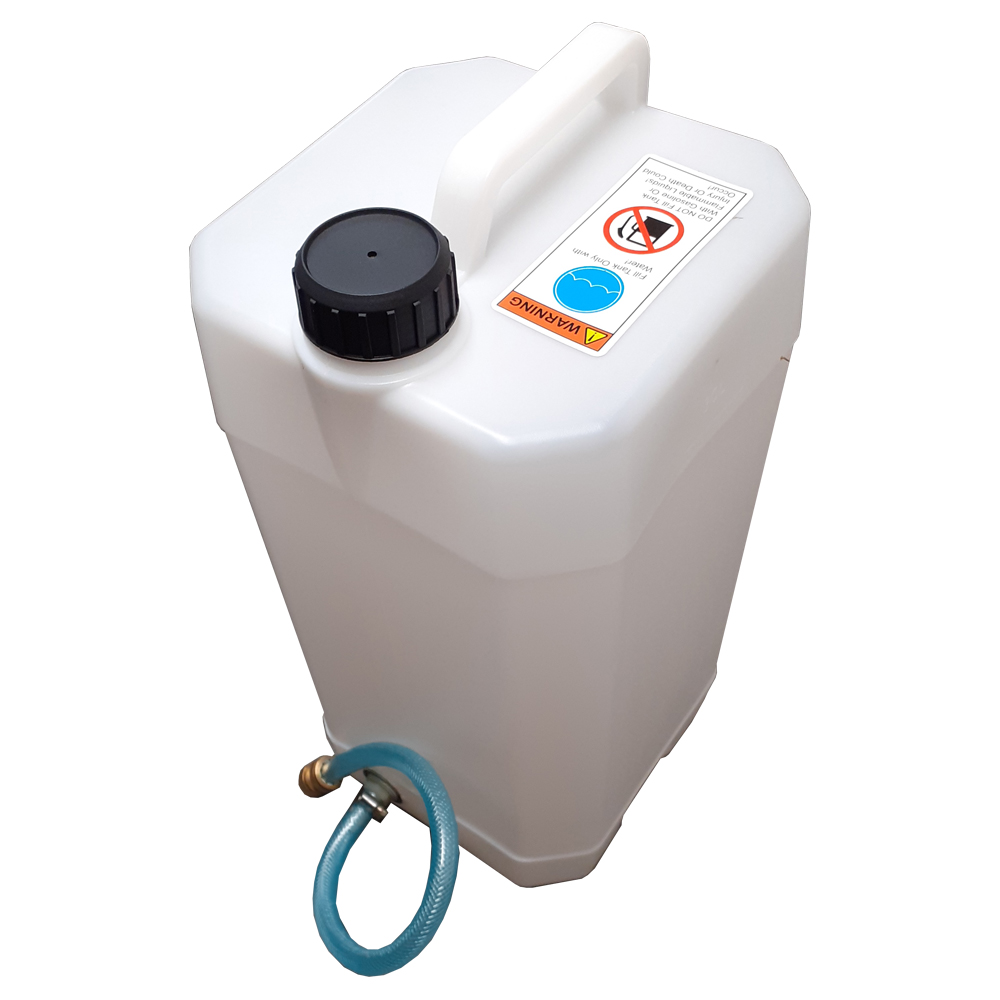

2	HV599 26 67-01 Available to backorder	Reservoir (incl. pos. 2.3.26.27)	£145.56 £121.30
2	HV536 26 04-01 Available to backorder	Tank Assy (straight nipple)	£162.48 £135.40
3	HV543 04 56-12 Available to backorder	Quick Coupling	£21.59 £17.99
4	HV502 08 29-01 Available to backorder	Blade Guard	£288.24 £240.20
5	HV542 20 23-08 Available to backorder	Fitting	£20.66 £17.22
6	HV505 21 34-01 Available to backorder	Valve	£57.25 £47.71
7	HV725 22 95-71 Available to backorder	Screw Ehhm	£1.32 £1.10
8	HV735 21 64-01 Available to backorder	Lockwasher	£0.77 £0.64
11	HV542 20 23-21 Available to backorder	Fitting	£3.22 £2.68
12	HV576 19 93-02 Available to backorder	Hose ((~ 70cm))	£43.00 £35.83
13	HV588 22 21-01 Available to backorder	Hexagon Nut Flange	£1.56 £1.30
14	HV542 04 56-40 Available to backorder	Washer	£3.41 £2.84
15	HV504 06 92-01 Available to backorder	Kit	£51.30 £42.75
16	HV529 70 68-02 Available to backorder	Parking Brake	£122.88 £102.40
17	HV542 20 23-15 Available to backorder	Side Laminate (US)	£87.72 £73.10
19	HV534 15 00-01 Available to backorder	Strainer	£32.45 £27.04
20	HV585 97 31-01 Available to backorder	Screw Ehhfm	£5.08 £4.23
21	HV590 29 75-01 Available to backorder	Washer	£8.48 £7.07
22	HV725 63 66-01 Available to backorder	Screw Ihcsfm	£1.32 £1.10
23	HV590 56 76-01 Available to backorder	Sticker	£8.75 £7.29
24	HV542 19 06-17 Available to backorder	Decal	£2.83 £2.36
26	HV543 85 03-44 Available to backorder	Clip	£2.99 £2.49
27	HV576 19 93-04 Available to backorder	Hose ((~ 100cm))	£60.46 £50.38
