Husqvarna DRT900 - 2016-8 - Mainframe - Left Side

Description

Husqvarna DRT900

Model Year - 2016-8 - 96093002502

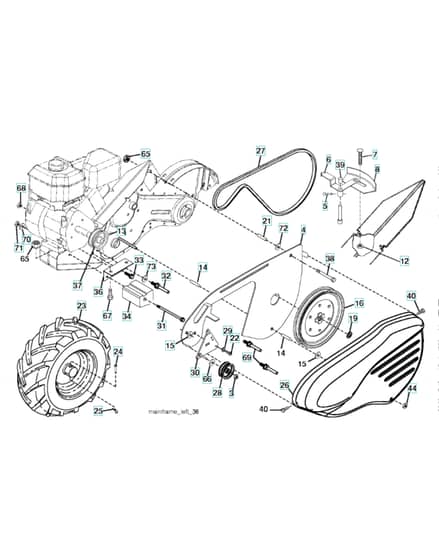

Mainframe - Left Side - Parts Diagram

	Part No.	Details
4	HV583 87 77-01 Available to backorder	Shieldinner Belt Guard Rt	£25.27 £21.06
5	HV532 16 43-29 Available to backorder	Pin	£3.54 £2.95
6	HV532 16 27-56 Available to backorder	Lever	£18.82 £15.68
8	HV583 87 92-01 Available to backorder	Panel	£8.51 £7.09
13	HV823 23 05-06 Available to backorder	Screw	£1.56 £1.30
14	HV532 15 61-17 Available to backorder	Spacer	£7.06 £5.88
15	HV585 83 12-01 Available to backorder	Spacer	£2.83 £2.36
16	HV532 14 51-02 Available to backorder	Pulley	£106.68 £88.90
19	HV812 00 00-28 Available to backorder	Clip	£0.56 £0.47
21	HV585 83 08-01 Available to backorder	Spacer	£5.12 £4.27
22	HV874 77 05-08 Available to backorder	Bolt	£3.32 £2.77
23	HV581 50 99-02 Available to backorder	Wheel Assy	£123.24 £102.70
26	HV532 44 04-38 Available to backorder	Belt Guard	£82.44 £68.70
27	HV591 37 24-01 Available to backorder	Belt	£26.20 £21.83
28	HV532 10 46-79 Available to backorder	Pulley	£16.38 £13.65
29	HV812 00 00-32 Available to backorder	Retainer Ring	£0.77 £0.64
30	HV584 28 92-01 Available to backorder	Bracket	£16.04 £13.37
31	HV581 74 72-01 Available to backorder	Screw	£3.32 £2.77
33	HV874 76 06-16 Available to backorder	Bolt	£2.09 £1.74
34	HV581 01 06-01 Available to backorder	Weightlh	£115.80 £96.50
36	HV581 86 48-01 Available to backorder	Bracketlh	£4.80 £4.00
37	HV532 13 08-12 Available to backorder	Pulley	£17.83 £14.86
39	HV532 14 00-62 Available to backorder	Cap	£7.06 £5.88
40	HV532 17 04-88 Available to backorder	Screw	£2.30 £1.92
44	HV596 04 05-01 Available to backorder	Lock Nut	£2.03 £1.69
67	HV874 76 05-28 Available to backorder	Bolt	£6.29 £5.24
68	HV873 51 06-00 Available to backorder	Nut	£3.22 £2.68
71	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
