Husqvarna DIAMANT 400 - Product Complete

Husqvarna DIAMANT 400 - Product Complete

Part No. diamant_400_2008_08_product_complete-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

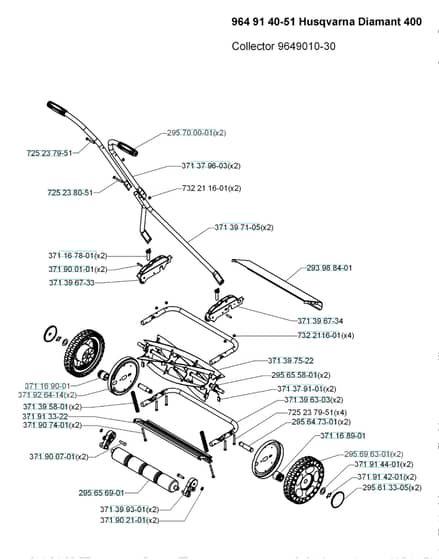

Husqvarna DIAMANT 400 - Product Complete

Husqvarna DIAMANT 400 - Product Complete

Description

Husqvarna DIAMANT 400

Model Year - 2008-08

Product Complete - Parts Diagram

Ref.		Img.	Part No.	Details
	295		HV295 64 73-01 Available to backorder	Shaft		£23.53 £19.61
	295		HV295 70 00-01 Available to backorder	G-400520 Spare Part		£9.08 £7.57
	295		HV295 65 58-01 Available to backorder	Bearing		£7.03 £5.86
	295		HV295 65 69-01 Available to backorder	Roller		£30.14 £25.12
	371		HV371 39 63-03 Available to backorder	Loop		£26.11 £21.76
	371		HV371 90 07-01 Available to backorder	Bolt		£5.24 £4.37
	371		HV371 91 33-22 Available to backorder	Blade		£65.04 £54.20
	371		HV371 16 78-01 Available to backorder	Knob		£5.51 £4.59
	371		HV371 39 75-22 Available to backorder	Mower Blade		£134.16 £111.80
	371		HV371 90 21-01 Available to backorder	Lockwasher		£5.24 £4.37
	371		HV371 91 42-01 Available to backorder	Clip		£2.05 £1.71
	371		HV371 37 96-03 Available to backorder	Handle		£28.84 £24.03
	371		HV371 90 01-01 Available to backorder	Clamping Sleeve		£1.51 £1.26
	371		HV371 90 74-01 Available to backorder	Screw		£4.74 £3.95
	725		HV725 23 80-51 Available to backorder	Screw Ehhm		£3.66 £3.05
	725		HV725 23 79-51 Available to backorder	Screw Ehhm		£4.06 £3.38
	732		HV732 21 16-01 Available to backorder	Lock Nut		£1.79 £1.49

Description

Husqvarna DIAMANT 400

Model Year - 2008-08

Product Complete - Parts Diagram
