Description

Husqvarna Cth2642Tr

Model Year -

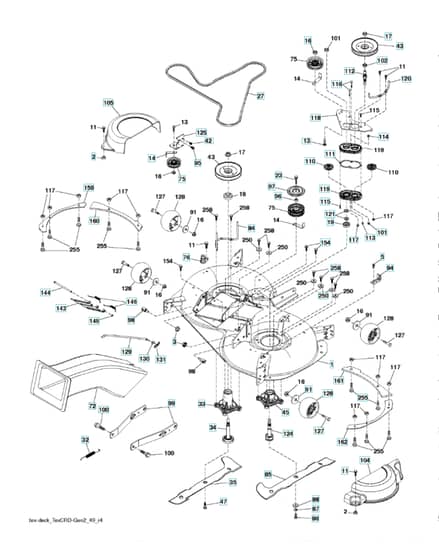

Mower Deck & Cutting Deck - Parts Diagram

Ref. Img. Part No. Details
  -1 Cutting Deck HV581 92 84-01
Cutting Deck
Out of stock
£269.28 £224.40

  0 Mandrelmandrel Assembly Short Part No. 58086901 (Includes Housing (Key #45). Shaft Assembly (Key #124). And Bearing (Key #19) Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) HV581 65 05-01
Mandrelmandrel Assembly Short Part No. 58086901 (Includes Housing (Key #45). Shaft Assembly (Key #124). And Bearing (Key #19) Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included)
Out of stock
£98.52 £82.10

  1 Mandrelmandrel Assembly Tall Part No. 580856001 (Includes Housing (Key #33). (Shaft Key #34) And (Bearing Key #19) Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) HV587 12 61-05
Mandrelmandrel Assembly Tall Part No. 580856001 (Includes Housing (Key #33). (Shaft Key #34) And (Bearing Key #19) Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included)
Out of stock
£124.32 £103.60

  3 Nut HV873 90 05-00
Nut
Out of stock
£2.60 £2.17

  5 Bolt HV817 00 05-10
Bolt
Out of stock
£3.48 £2.90

  11 Screw HV532 13 77-29
Screw
Out of stock
£2.70 £2.25

  23 Screw HV817 49 06-28
Screw
Out of stock
£7.46 £6.22

  27 Belt HV532 44 58-87
Belt
In stock
£53.86 £44.88

  35 Blade HV581 51 79-01
Blade
Out of stock
£44.50 £37.08

  47 Screw HV584 30 93-01
Screw
In stock
£8.16 £6.80

  76 Hose Coupling HV532 41 55-98
Hose Coupling
In stock
£5.16 £4.30

  86 Hood HV532 18 71-13
Hood
Out of stock
£160.32 £133.60

  88 Washer HV532 14 02-96
Washer
Out of stock
£8.09 £6.74

  94 Bracket HV532 19 72-50
Bracket
Out of stock
£8.71 £7.26

  95 Screw HV817 00 06-12
Screw
Out of stock
£5.60 £4.67

  98 Stud HV532 19 51-61
Stud
Out of stock
£2.86 £2.38

  99 Arm HV529 84 64-01
Arm
In stock
Was £31.64 £26.37 Special Price £21.52 £17.93

  100 Bolt HV532 19 65-39
Bolt
Out of stock
£5.94 £4.95

  102 Spacer HV532 40 25-11
Spacer
Out of stock
£6.85 £5.71

  104 Cover HV581 71 40-01
Cover
Out of stock
£28.60 £23.83

  105 Cover HV532 44 47-55
Cover
Out of stock
£34.80 £29.00

  110 Gear HV587 93 48-01
Gear
Out of stock
£52.55 £43.79

  114 Breather HV588 17 05-01
Breather
Out of stock
£14.92 £12.43

  127 Bolt HV596 43 44-04
Bolt
Out of stock
£5.65 £4.71

  128 Wheel HV532 17 48-73
Wheel
Out of stock
£19.82 £16.52

  131 Pin HV532 19 42-08
Pin
Out of stock
£1.67 £1.39

  145 Ring HV532 43 79-88
Ring
Out of stock
£5.15 £4.29

  154 Screw HV532 19 98-55
Screw
Out of stock
£1.63 £1.36

  159 Reinforcement Plate HV585 30 95-05
Reinforcement Plate
Out of stock
£10.57 £8.81

  160 Reinforcement Plate HV585 30 94-05
Reinforcement Plate
Out of stock
£6.20 £5.17

  161 Reinforcement Plate HV585 31 60-05
Reinforcement Plate
Out of stock
£4.97 £4.14

  162 Reinforcement Plate HV585 31 61-05
Reinforcement Plate
Out of stock
£11.81 £9.84

  255 Bolt HV539 10 98-00
Bolt
Out of stock
£3.04 £2.53

  258 Bolt HV584 95 39-01
Bolt
Out of stock
£5.60 £4.67


Description

Husqvarna Cth2642Tr

Model Year -

Mower Deck & Cutting Deck - Parts Diagram
