Husqvarna Cth2542 Xp - Engine

Husqvarna Cth2542 Xp - Engine

Part No. cth2542_xp_2006_01_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

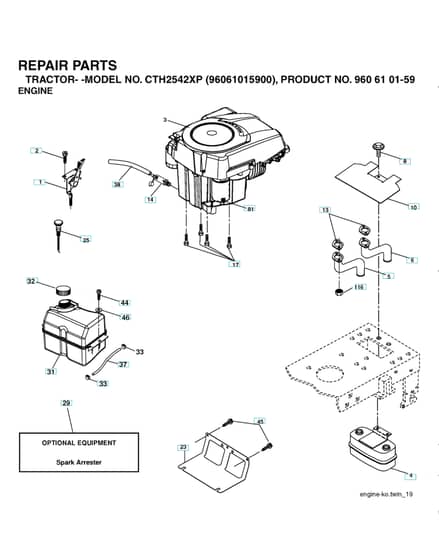

Husqvarna Cth2542 Xp - Engine

Husqvarna Cth2542 Xp - Engine

Description

Husqvarna Cth2542 Xp

Model Year - 2006-01

Engine - Parts Diagram

Ref.		Img.	Part No.	Details
	4		HV532 14 97-23 Available to backorder	Muffler		£152.04 £126.70
	5		HV532 14 66-99 Available to backorder	Pipe		£24.77 £20.64
	6		HV532 14 67-00 Available to backorder	Pipe		£36.30 £30.25
	8		HV532 17 18-77 Available to backorder	Bolt		£5.02 £4.18
	13		HV532 18 59-09 Available to backorder	Gasket		£7.51 £6.26
	17		HV817 06 06-20 Available to backorder	Screw		£5.75 £4.79
	23		HV531 15 07-01 Available to backorder	Heat Shield		£47.34 £39.45
	29		HV532 13 71-80 Available to backorder	Spark Arrester Kit		£46.73 £38.94
	33		HV532 12 34-87 Available to backorder	Hose Clamp		£0.77 £0.64
	37		HV532 13 70-40 Available to backorder	Hose		£15.25 £12.71
	44		HV817 67 04-12 Available to backorder	Screw		£5.24 £4.37
	45		HV817 00 06-12 Available to backorder	Screw		£5.78 £4.82
	46		HV819 09 14-16 Available to backorder	Washer		£3.07 £2.56
	116		HV532 18 43-62 Available to backorder	Nut		£2.77 £2.31

Description

Husqvarna Cth2542 Xp

Model Year - 2006-01

Engine - Parts Diagram
