Husqvarna Cth2542 Twin - Mower Deck & Cutting Deck

Name: Husqvarna Cth2542 Twin - Mower Deck & Cutting Deck
SKU: cth2542_twin_mower_deck_cutting_deck-group
Price: 1.85 GBP
Availability: InStock

Part No. cth2542_twin_mower_deck_cutting_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Cth2542 Twin - Mower Deck & Cutting Deck

Description

Husqvarna Cth2542 Twin

Model Year -

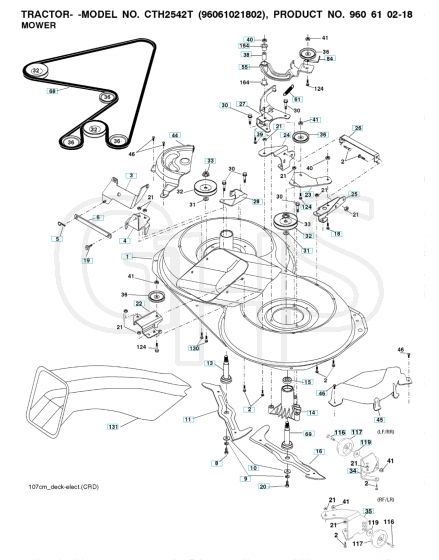

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
-1	HV532 16 55-79 Available to backorder	Spindle	£122.64 £102.20
0	HV532 13 07-94 Available to backorder	Mandrel	£159.60 £133.00
2	HV595 90 16-01 Available to backorder	Bolt	£4.22 £3.52
4	HV532 16 91-67 Available to backorder	Bracket	£38.54 £32.12
6	HV532 16 55-57 Available to backorder	Rod	£23.08 £19.23
10	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
11	HV532 18 05-83 Available to backorder	Blade	£33.49 £27.91
14	HV532 12 87-74 Available to backorder	Bearing Housing	£73.32 £61.10
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
16	HV532 18 05-84 Available to backorder	Blade	£33.49 £27.91
23	HV532 16 91-66 Available to backorder	Bracket	£29.52 £24.60
27	HV532 16 91-72 Available to backorder	Bracket	£44.36 £36.97
31	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
32	HV532 19 81-45 Available to backorder	Pulley	£40.55 £33.79
38	HV532 16 98-51 In stock	Spacer	£11.51 £9.59
39	HV872 11 06-22 Available to backorder	Bolt	£8.32 £6.93
40	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
69	HV532 16 54-82 Available to backorder	Shaft	£65.28 £54.40
116	HV596 43 44-04 Available to backorder	Bolt	£5.48 £4.57
117	HV532 17 48-73 Available to backorder	Wheel	£20.74 £17.28
130	HV872 11 05-06 Available to backorder	Bolt	£3.97 £3.31
131	HV532 16 56-61 Available to backorder	Pipe	£111.48 £92.90
