Husqvarna Cth2238Te - Mower Deck & Cutting Deck

Description

Husqvarna Cth2238Te

Model Year -

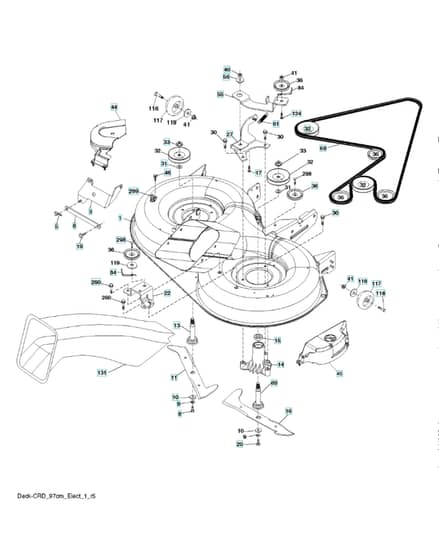

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
6	HV532 16 55-57 Available to backorder	Rod	£23.08 £19.23
10	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
11	HV532 42 79-84 In stock	Ride On Blade	£26.64 £22.20
14	HV532 12 87-74 Available to backorder	Bearing Housing	£73.32 £61.10
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
16	HV532 42 79-85 In stock	Blade	£26.64 £22.20
31	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
40	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
44	HV532 43 49-46 Available to backorder	Cover	£37.69 £31.41
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
56	HV532 16 57-23 In stock	Spacer	Was £12.28 £10.23 Special Price £8.48 £7.07
69	HV532 16 54-82 Available to backorder	Shaft	£65.28 £54.40
116	HV596 43 44-04 Available to backorder	Bolt	£5.48 £4.57
117	HV532 17 48-73 Available to backorder	Wheel	£20.74 £17.28
131	HV532 16 56-61 Available to backorder	Pipe	£111.48 £92.90
260	HV817 67 06-08 Available to backorder	Screw	£5.24 £4.37
298	HV817 49 06-28 Available to backorder	Screw	£8.03 £6.69
299	HV532 41 55-98 In stock	Hose Coupling	£5.20 £4.33
