Husqvarna Cth2138R - Drive

Name: Husqvarna Cth2138R - Drive
SKU: cth2138r_drive-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Cth2138R

Model Year -

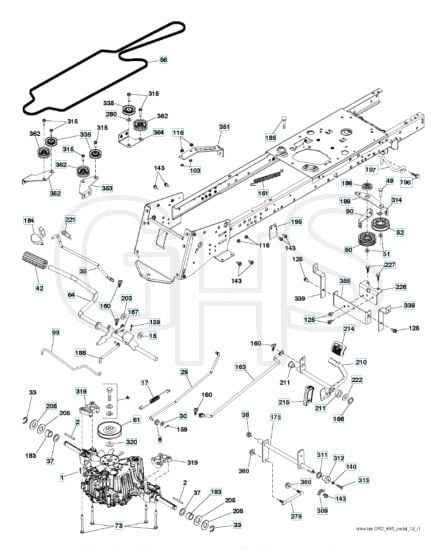

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 12 35-83 Available to backorder	Key	£7.03 £5.86
29	HV532 43 58-81 Available to backorder	Rod	£22.42 £18.68
33	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
35	HV532 40 10-31 Available to backorder	Rod	£12.94 £10.78
37	HV532 18 89-67 In stock	Washer	£5.04 £4.20
38	HV532 16 96-13 Available to backorder	Sleeve	£5.68 £4.73
49	HV872 11 06-14 Available to backorder	Bolt	£7.12 £5.93
50	HV532 19 43-27 Available to backorder	Pulley	£43.18 £35.98
52	HV532 19 43-26 Available to backorder	Pulley	£42.46 £35.38
73	HV874 49 05-56 Available to backorder	Bolt	£3.34 £2.78
116	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
140	HV596 02 98-01 Available to backorder	Washer	£2.44 £2.03
143	HV817 49 05-08 Available to backorder	Screw	£3.62 £3.02
160	HV532 16 94-84 Available to backorder	Pin	£4.06 £3.38
161	HV532 10 57-09 Available to backorder	Spring	£16.49 £13.74
166	HV532 42 91-64 Available to backorder	Nut	£1.82 £1.52
167	HV532 40 52-57 Available to backorder	Latch	£5.82 £4.85
175	HV532 42 93-59 Available to backorder	Shaft	£41.74 £34.78
183	HV532 13 70-57 Available to backorder	Spacer	£9.52 £7.93
185	HV872 11 06-22 Available to backorder	Bolt	£8.40 £7.00
186	HV532 19 43-21 Available to backorder	Spacer	£14.22 £11.85
188	HV582 21 70-01 Available to backorder	Link	£10.36 £8.63
195	HV580 45 69-01 Available to backorder	Bracket	£9.72 £8.10
196	HV817 00 06-16 Available to backorder	Screw	£6.34 £5.28
197	HV585 65 86-01 Available to backorder	Clutch	£12.28 £10.23
205	HV532 12 17-48 Available to backorder	Washer	£5.80 £4.83
210	HV532 40 09-80 Available to backorder	Pedal Arm	£36.22 £30.18
211	HV532 12 01-83 Available to backorder	Bearing	£6.23 £5.19
221	HV532 40 31-87 Available to backorder	Spring	£3.88 £3.23
222	HV879 21 20-10 Available to backorder	Washer	£5.68 £4.73
312	HV532 16 56-14 Available to backorder	Hub	£7.20 £6.00
315	HV817 58 05-20 Available to backorder	Bolt	£5.32 £4.43
320	HV532 18 76-90 Available to backorder	Washer	£3.54 £2.95
335	HV532 19 95-34 Available to backorder	Pulley	£21.74 £18.12
360	HV532 44 47-14 Available to backorder	Nut	£2.34 £1.95
