Husqvarna Cth210 Xp - Mower Lift & Deck Lift

Name: Husqvarna Cth210 Xp - Mower Lift & Deck Lift
SKU: cth210_xp_2006_01_mower_lift_deck_lift-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Cth210 Xp - Mower Lift & Deck Lift

Description

Husqvarna Cth210 Xp

Model Year - 2006-01

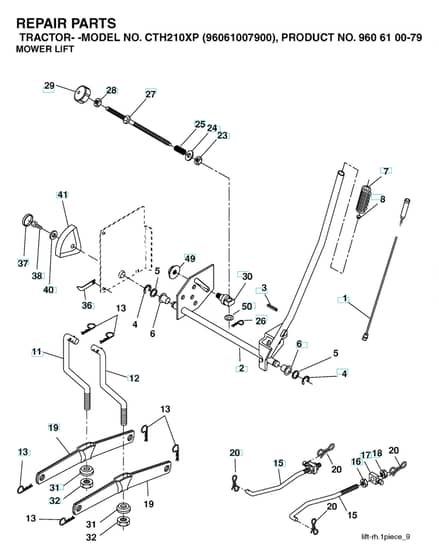

Mower Lift & Deck Lift - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 15 94-60 Available to backorder	Wire	£25.88 £21.57
0	HV532 11 04-52 Available to backorder	Nut	£2.02 £1.68
2	HV532 15 94-71 Available to backorder	Lever	£98.34 £81.95
3	HV532 10 57-67 In stock	Pin Retaining Screw	Was £6.62 £5.52 Special Price £4.88 £4.07
4	HV812 00 00-02 Available to backorder	Retainer Ring	£0.77 £0.64
5	HV819 21 16-21 Available to backorder	Washer	£2.34 £1.95
6	HV532 12 01-83 Available to backorder	Bearing	£6.23 £5.19
7	HV532 12 56-31 Available to backorder	Handle	£12.94 £10.78
15	HV532 17 32-88 Available to backorder	Link	£15.36 £12.80
16	HV596 43 34-01 In stock	Nut	Was £3.43 £2.86 Special Price £2.50 £2.08
19	HV532 13 98-68 Available to backorder	Lever	£18.76 £15.63
20	HV532 19 42-09 Available to backorder	Spring	£4.44 £3.70
24	HV819 13 10-16 Available to backorder	Washer	£2.34 £1.95
26	HV532 16 94-84 Available to backorder	Pin	£4.06 £3.38
27	HV532 12 69-71 Available to backorder	Lever	£11.00 £9.17
29	HV532 13 80-57 Available to backorder	Knob	£17.46 £14.55
30	HV532 15 02-33 Available to backorder	Trunnion	£11.80 £9.83
36	HV532 15 50-97 Available to backorder	Indicator	£5.04 £4.20
38	HV817 06 05-16 Available to backorder	Screw	£5.04 £4.20
41	HV532 12 39-34 Available to backorder	Indicator	£5.24 £4.37
