Husqvarna Cth210 Xp - Chassis & Enclosures

Name: Husqvarna Cth210 Xp - Chassis & Enclosures
SKU: cth210_xp_2006_01_chassis_enclosures-group
Price: 0.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Cth210 Xp - Chassis & Enclosures

Description

Husqvarna Cth210 Xp

Model Year - 2006-01

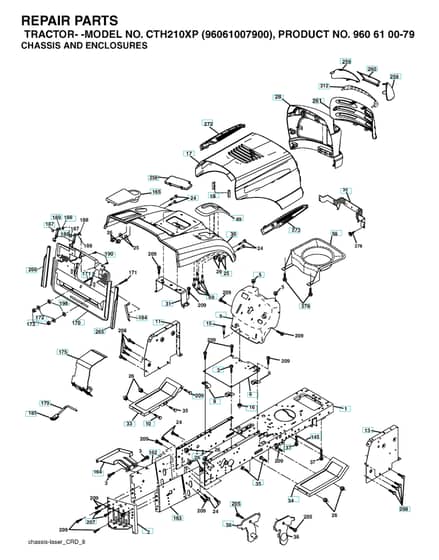

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
8	HV532 12 64-71 Available to backorder	Clip	£0.92 £0.77
17	HV532 18 88-93 Available to backorder	Hood	£69.76 £58.13
18	HV532 18 49-21 Available to backorder	Bumper	£7.20 £6.00
24	HV874 78 06-16 Available to backorder	Bolt	£6.34 £5.28
31	HV532 16 51-56 Available to backorder	Bracket	£40.12 £33.43
37	HV817 49 05-08 Available to backorder	Screw	£3.62 £3.02
69	HV532 14 24-32 Available to backorder	Screw	£2.34 £1.95
164	HV532 16 56-05 Available to backorder	Support	£111.36 £92.80
171	HV872 14 06-20 Available to backorder	Bolt	£7.76 £6.47
173	HV873 51 06-00 Available to backorder	Nut	£3.24 £2.70
184	HV532 17 46-62 Available to backorder	Bracket	£6.97 £5.81
186	HV597 00 06-01 Available to backorder	Latch	£9.46 £7.88
188	HV819 06 12-16 Available to backorder	Washer	£2.84 £2.37
189	HV810 07 10-00 Available to backorder	Washer	£2.58 £2.15
190	HV596 03 90-01 Available to backorder	Screw	£1.21 £1.01
205	HV817 49 06-08 Available to backorder	Screw	£5.32 £4.43
208	HV817 67 06-08 Available to backorder	Screw	£5.32 £4.43
209	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
272	HV532 18 88-95 Available to backorder	Vent Hood Lh	£27.26 £22.72
