Husqvarna Cth2036 Xp - Steering

Husqvarna Cth2036 Xp - Steering

Part No. cth2036_xp_2006_01_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Cth2036 Xp - Steering

Husqvarna Cth2036 Xp - Steering

Description

Husqvarna Cth2036 Xp

Model Year - 2006-01

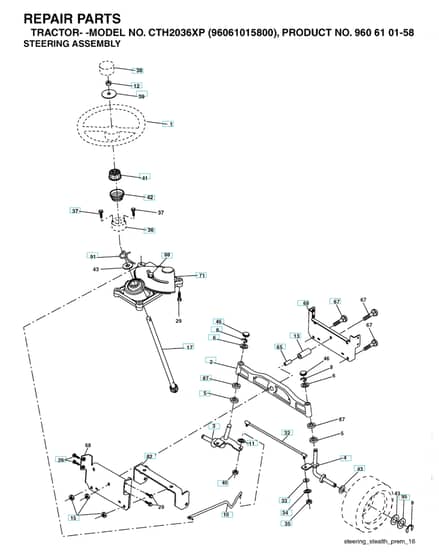

Steering - Parts Diagram

Ref.		Img.	Part No.	Details
	3		HV596 87 39-01 Available to backorder	Spindle		£64.44 £53.70
	4		HV532 16 98-39 Available to backorder	Spindle		£61.32 £51.10
	6		HV532 12 17-48 Available to backorder	Washer		£6.00 £5.00
	8		HV812 00 00-29 In stock	Retainer Ring		£0.77 £0.64
	10		HV532 17 51-21 Available to backorder	Rod		£66.84 £55.70
	11		HV810 04 06-00 Available to backorder	Washer		£2.54 £2.12
	13		HV532 13 65-18 Available to backorder	Pipe		£7.03 £5.86
	29		HV817 00 06-12 Available to backorder	Screw		£5.78 £4.82
	32		HV532 17 18-88 Available to backorder	Rod		£91.56 £76.30
	34		HV810 04 05-00 Available to backorder	Washer		£1.78 £1.48
	35		HV873 54 05-00 Available to backorder	Nut		£2.30 £1.92
	37		HV532 15 29-27 In stock	Screw		Was £2.58 £2.15 Special Price £1.78 £1.48
	38		HV532 19 36-52 Available to backorder	Hub		£28.84 £24.03
	43		HV532 12 17-49 In stock	Washer		£2.82 £2.35
	67		HV872 11 06-18 Available to backorder	Bolt		£6.48 £5.40
	68		HV532 16 98-27 Available to backorder	Shaft		£46.80 £39.00
	71		HV531 16 78-01 In stock	Steering Gear		£132.60 £110.50
	82		HV531 17 02-01 In stock	Support Essieu Avant		£44.44 £37.03
	87		HV532 17 39-66 Available to backorder	Washer		£8.34 £6.95
	88		HV532 17 51-18 Available to backorder	Bolt		£7.70 £6.42
	91		HV532 17 55-53 Available to backorder	Spring		£4.36 £3.63
	95		HV532 18 89-67 In stock	Washer		£4.33 £3.61

Description

Husqvarna Cth2036 Xp

Model Year - 2006-01

Steering - Parts Diagram
