Husqvarna Cth2036 T - Chassis & Enclosures

Name: Husqvarna Cth2036 T - Chassis & Enclosures
SKU: cth2036_t_2009_04_chassis_enclosures-group
Price: 0.75 GBP
Availability: InStock

Part No. cth2036_t_2009_04_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Cth2036 T - Chassis & Enclosures

Description

Husqvarna Cth2036 T

Model Year - 2009-04

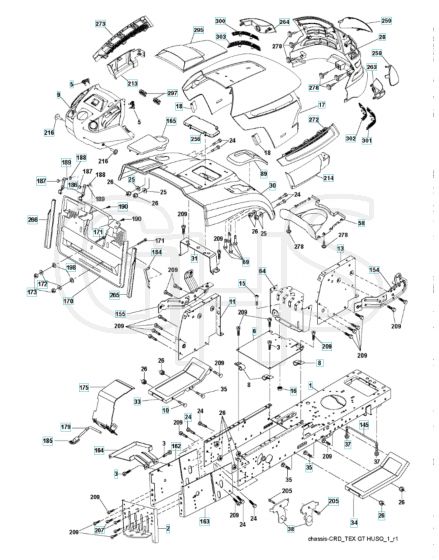

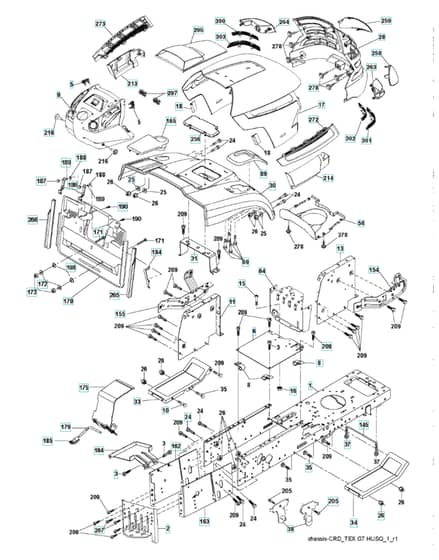

Chassis & Enclosures - Parts Diagram

	Part No.	Details
5	HV532 40 75-90 Available to backorder	Damping Piece	£5.90 £4.92
8	HV532 12 64-71 Available to backorder	Clip	£0.90 £0.75
13	HV532 17 82-98 Available to backorder	Panel	£37.69 £31.41
17	HV532 41 10-46 Available to backorder	Hood	£202.68 £168.90
18	HV532 40 47-42 Available to backorder	Damping Piece	£12.18 £10.15
24	HV874 78 06-16 Available to backorder	Bolt	£6.29 £5.24
28	HV532 40 86-07 Available to backorder	Front Cover	£118.92 £99.10
31	HV532 16 51-56 Available to backorder	Bracket	£39.73 £33.11
37	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
69	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
164	HV532 16 56-05 Available to backorder	Support	£106.68 £88.90
171	HV872 14 06-20 Available to backorder	Bolt	£7.70 £6.42
173	HV873 51 06-00 Available to backorder	Nut	£3.22 £2.68
184	HV532 17 46-62 Available to backorder	Bracket	£5.89 £4.91
186	HV597 00 06-01 In stock	Latch	£9.79 £8.16
188	HV819 06 12-16 Available to backorder	Washer	£2.83 £2.36
189	HV810 07 10-00 Available to backorder	Washer	£2.56 £2.13
190	HV596 03 90-01 Available to backorder	Screw	£1.20 £1.00
205	HV817 49 06-08 Available to backorder	Screw	£5.24 £4.37
209	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
213	HV532 40 17-11 Available to backorder	List	£9.11 £7.59
216	HV817 06 04-10 Available to backorder	Screw	£2.30 £1.92
258	HV532 19 89-06 Available to backorder	Lens	£18.60 £15.50
259	HV532 19 89-07 Available to backorder	Lens	£18.60 £15.50
264	HV532 19 71-99 Available to backorder	Lens	£27.55 £22.96
273	HV532 40 30-76 Available to backorder	List	£8.09 £6.74
278	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
297	HV532 19 91-45 Available to backorder	Clip	£0.90 £0.75
