Husqvarna Cth180 Xp - Mower Deck & Cutting Deck

Description

Husqvarna Cth180 Xp

Model Year - 2006-03

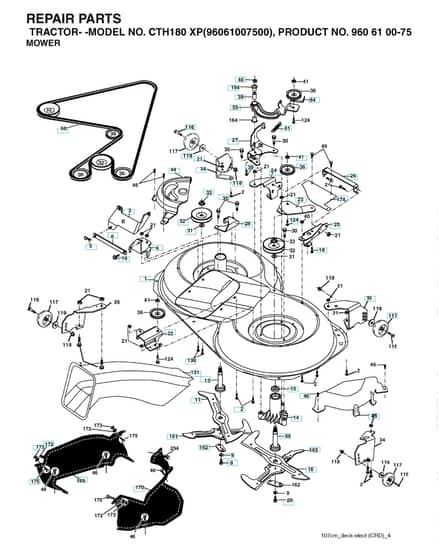

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV595 90 16-01 Out of stock	Bolt	£4.30 £3.58
4	HV532 16 91-67 Out of stock	Bracket	£39.25 £32.71
6	HV532 16 55-57 Out of stock	Rod	£22.39 £18.66
11	HV532 18 05-83 Out of stock	Blade	£31.91 £26.59
14	HV532 12 87-74 Out of stock	Bearing Housing	£68.28 £56.90
15	HV532 11 04-85 Out of stock	Bearing	£8.52 £7.10
16	HV532 18 05-84 Out of stock	Blade	£31.91 £26.59
19	HV532 13 28-27 Out of stock	Spec. Bolt	£6.85 £5.71
23	HV532 16 91-66 Out of stock	Bracket	£30.07 £25.06
27	HV532 16 91-72 Out of stock	Bracket	£42.26 £35.22
31	HV532 18 76-90 Out of stock	Washer	£3.48 £2.90
32	HV532 19 81-45 Out of stock	Pulley	£39.41 £32.84
38	HV532 16 98-51 Out of stock	Spacer	£10.94 £9.12
39	HV872 11 06-22 Out of stock	Bolt	£8.09 £6.74
40	HV596 32 26-01 Out of stock	Nut	£3.24 £2.70
45	HV532 17 55-39 Out of stock	Cover	£35.95 £29.96
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
55	HV532 16 98-49 Out of stock	Lever	£34.80 £29.00
69	HV532 16 54-82 Out of stock	Shaft	£59.64 £49.70
117	HV532 17 48-73 Out of stock	Wheel	£19.82 £16.52
130	HV872 11 05-06 Out of stock	Bolt	£3.85 £3.21
131	HV532 16 56-61 Out of stock	Pipe	£103.80 £86.50
161	HV532 44 69-93 Out of stock	Blade	£32.11 £26.76
163	HV532 18 04-25 Out of stock	Blade	£31.06 £25.88
175	HV872 11 06-08 Out of stock	Bolt	£6.85 £5.71
