Husqvarna Cth180 Xp - Chassis & Enclosures

Name: Husqvarna Cth180 Xp - Chassis & Enclosures
SKU: cth180_xp_2006_03_chassis_enclosures-group
Price: 0.75 GBP
Availability: InStock

Part No. cth180_xp_2006_03_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Cth180 Xp - Chassis & Enclosures

Description

Husqvarna Cth180 Xp

Model Year - 2006-03

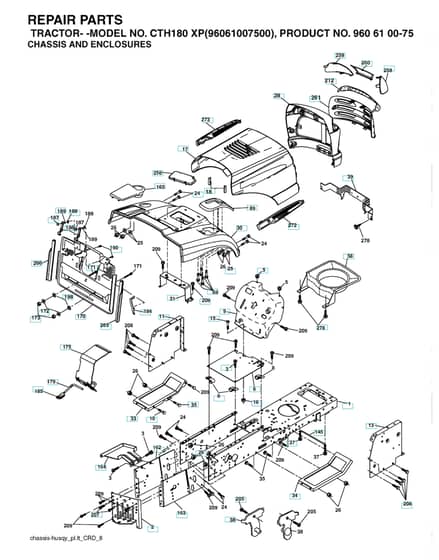

Chassis & Enclosures - Parts Diagram

	Part No.	Details
8	HV532 12 64-71 Available to backorder	Clip	£0.90 £0.75
17	HV532 18 88-93 Available to backorder	Hood	£68.16 £56.80
18	HV532 18 49-21 Available to backorder	Bumper	£7.14 £5.95
24	HV874 78 06-16 Available to backorder	Bolt	£6.29 £5.24
31	HV532 16 51-56 Available to backorder	Bracket	£39.73 £33.11
37	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
69	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
164	HV532 16 56-05 Available to backorder	Support	£106.68 £88.90
171	HV872 14 06-20 Available to backorder	Bolt	£7.70 £6.42
173	HV873 51 06-00 Available to backorder	Nut	£3.22 £2.68
184	HV532 17 46-62 Available to backorder	Bracket	£5.89 £4.91
186	HV597 00 06-01 In stock	Latch	£9.79 £8.16
188	HV819 06 12-16 Available to backorder	Washer	£2.83 £2.36
189	HV810 07 10-00 Available to backorder	Washer	£2.56 £2.13
190	HV596 03 90-01 Available to backorder	Screw	£1.20 £1.00
205	HV817 49 06-08 Available to backorder	Screw	£5.24 £4.37
208	HV817 67 06-08 Available to backorder	Screw	£5.24 £4.37
209	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
273	HV532 18 88-95 Available to backorder	Vent Hood Lh	£27.55 £22.96
