Husqvarna Cth160 Ii - Steering

Name: Husqvarna Cth160 Ii - Steering
SKU: cth160_ii_2001_02_steering-group
Price: 0.74 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Cth160 Ii

Model Year - 2001-02

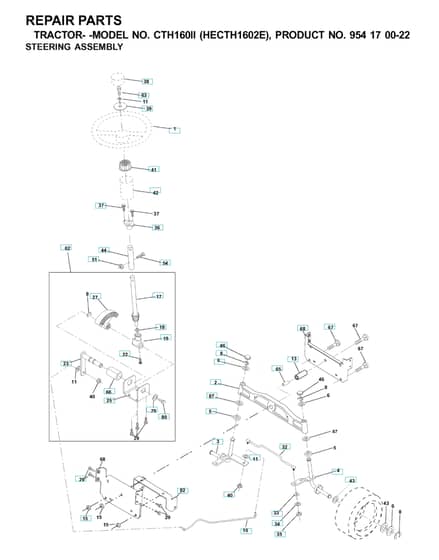

Steering - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HV596 87 39-01 Available to backorder	Spindle	£64.38 £53.65
4	HV532 16 98-39 Available to backorder	Spindle	£64.04 £53.37
6	HV532 12 17-48 Available to backorder	Washer	£5.80 £4.83
8	HV812 00 00-29 Available to backorder	Retainer Ring	£0.89 £0.74
10	HV532 16 98-32 Available to backorder	Rod	£79.58 £66.32
11	HV810 04 06-00 Available to backorder	Washer	£2.65 £2.21
13	HV532 13 65-18 Available to backorder	Pipe	£7.12 £5.93
18	HV532 05 70-79 Available to backorder	Washer	£2.34 £1.95
19	HV532 16 03-95 Available to backorder	Support	£9.06 £7.55
22	HV532 16 58-57 Available to backorder	Screw	£2.58 £2.15
23	HV532 16 58-51 Available to backorder	Link	£30.40 £25.33
25	HV532 15 44-06 Available to backorder	Bracket	£34.24 £28.53
27	HV532 13 68-74 Available to backorder	Eccentric Disc	£91.22 £76.02
32	HV532 17 01-62 Available to backorder	Rod	£95.12 £79.27
34	HV810 04 05-00 Available to backorder	Washer	£1.76 £1.47
35	HV873 54 05-00 Available to backorder	Nut	£2.34 £1.95
37	HV532 15 29-27 In stock	Screw	£2.58 £2.15
41	HV532 15 99-45 Available to backorder	Adapter	£16.82 £14.02
43	HV532 12 17-49 In stock	Washer	£3.28 £2.73
46	HV532 12 12-32 Available to backorder	Hub Cap	£5.42 £4.52
51	HV596 04 05-01 Available to backorder	Lock Nut	£2.06 £1.72
63	HV874 78 06-16 Available to backorder	Bolt	£6.34 £5.28
66	HV532 15 44-04 Available to backorder	Bushing	£14.22 £11.85
68	HV532 16 98-27 Available to backorder	Shaft	£47.22 £39.35
80	HV874 95 06-12 Available to backorder	Bolt	£3.12 £2.60
87	HV532 17 39-66 Available to backorder	Washer	£8.40 £7.00
