Husqvarna Cth140Xp - Chassis & Enclosures

Husqvarna Cth140Xp - Chassis & Enclosures

Part No. cth140xp_2006_06_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

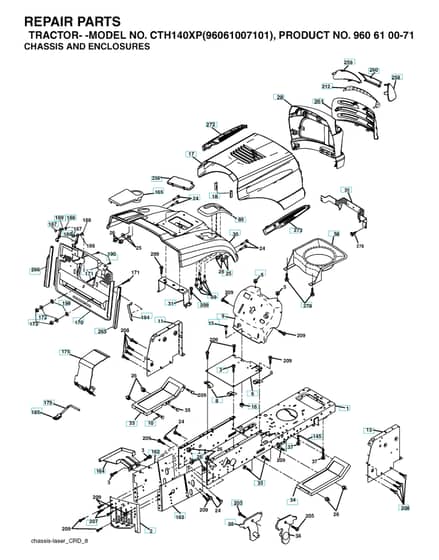

Husqvarna Cth140Xp - Chassis & Enclosures

Husqvarna Cth140Xp - Chassis & Enclosures

Description

Husqvarna Cth140Xp

Model Year - 2006-06

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	8		HV532 12 64-71 Available to backorder	Clip		£0.90 £0.75
	17		HV532 18 88-93 Available to backorder	Hood		£68.16 £56.80
	18		HV532 18 49-21 Available to backorder	Bumper		£7.14 £5.95
	24		HV874 78 06-16 Available to backorder	Bolt		£6.29 £5.24
	31		HV532 16 51-56 Available to backorder	Bracket		£39.73 £33.11
	37		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	69		HV532 14 24-32 Available to backorder	Screw		£2.30 £1.92
	164		HV532 16 56-05 Available to backorder	Support		£106.68 £88.90
	171		HV872 14 06-20 Available to backorder	Bolt		£7.70 £6.42
	173		HV873 51 06-00 Available to backorder	Nut		£3.22 £2.68
	184		HV532 17 46-62 Available to backorder	Bracket		£5.89 £4.91
	186		HV597 00 06-01 In stock	Latch		£9.79 £8.16
	188		HV819 06 12-16 Available to backorder	Washer		£2.83 £2.36
	189		HV810 07 10-00 Available to backorder	Washer		£2.56 £2.13
	190		HV596 03 90-01 Available to backorder	Screw		£1.20 £1.00
	205		HV817 49 06-08 Available to backorder	Screw		£5.24 £4.37
	208		HV817 67 06-08 Available to backorder	Screw		£5.24 £4.37
	209		HV817 00 06-12 Available to backorder	Screw		£5.78 £4.82
	272		HV532 18 88-95 Available to backorder	Vent Hood Lh		£27.55 £22.96

Description

Husqvarna Cth140Xp

Model Year - 2006-06

Chassis & Enclosures - Parts Diagram
