Husqvarna Cth135 - Bagger

Husqvarna Cth135 - Bagger

Description

Husqvarna Cth135

Model Year - 2003-01

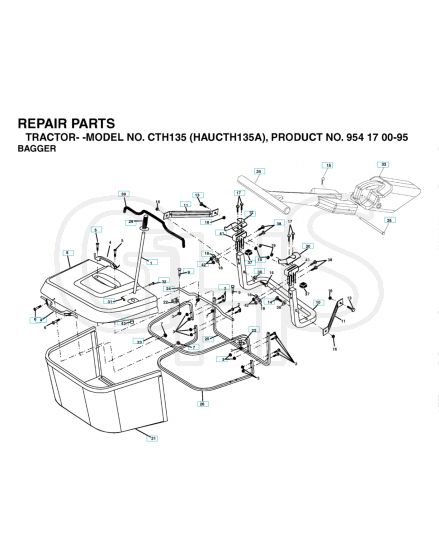

Bagger - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	4		HV532 16 99-16 Out of stock	Handle		£17.40 £14.50
	5		HV874 98 10-24 Out of stock	Screw		£3.48 £2.90
	9		HV872 14 04-18 Out of stock	Bolt		£4.86 £4.05
	11		HV532 16 57-19 Out of stock	Rod		£20.52 £17.10
	17		HV595 90 16-01 Out of stock	Bolt		£4.30 £3.58
	19		HV873 90 05-00 Out of stock	Nut		£2.60 £2.17
	23		HV532 16 57-82 Out of stock	Frame		£163.44 £136.20
	24		HV532 16 57-83 Out of stock	Frame		£27.71 £23.09
	28		HV532 16 57-87 Out of stock	Handle		£9.95 £8.29
	31		HV532 16 94-84 Out of stock	Pin		£4.00 £3.33
	32		HV532 12 68-75 Out of stock	Rivet		£2.36 £1.97
	34		HV532 16 55-70 Out of stock	Handle		£65.16 £54.30
	35		HV532 16 55-72 Out of stock	Pin Retaining Screw		£14.92 £12.43
	37		HV532 17 54-01 Out of stock	Plug		£6.43 £5.36
	38		HV872 01 05-20 Out of stock	Bolt		£6.85 £5.71
	42		HV596 04 05-01 Out of stock	Lock Nut		£2.06 £1.72
	43		HV532 17 40-83 Out of stock	Plug		£8.71 £7.26

Description

Husqvarna Cth135

Model Year - 2003-01

Bagger - Parts Diagram
