Husqvarna Cth 224Tfi - Mower Deck & Cutting Deck

Name: Husqvarna Cth 224Tfi - Mower Deck & Cutting Deck
SKU: cth_224tfi_mower_deck_cutting_deck-group
Price: 0.74 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Cth 224Tfi - Mower Deck & Cutting Deck

Description

Husqvarna Cth 224Tfi

Model Year -

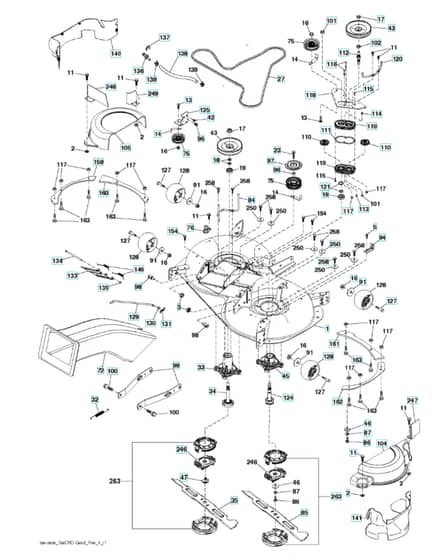

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV586 21 39-01 Available to backorder	Cutting Deck"Includes Housing. Shaft Assembly. And Bearing Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included"	£1,131.60 £943.00
3	HV873 90 05-00 Available to backorder	Nutrh	£2.72 £2.27
5	HV817 00 05-10 Available to backorder	Bolt	£3.62 £3.02
11	HV532 13 77-29 Available to backorder	Screw	£2.52 £2.10
18	HV532 18 76-90 Available to backorder	Washer	£3.54 £2.95
19	HV532 11 04-85 In stock	Bearing	£8.52 £7.10
23	HV817 49 06-28 Available to backorder	Screw	£7.26 £6.05
35	HV581 12 11-01 Available to backorder	Blade	£39.96 £33.30
46	HV585 72 99-01 Available to backorder	Washer	£6.20 £5.17
47	HV584 30 93-01 In stock	Screw	£15.85 £13.21
94	HV532 19 72-50 Available to backorder	Bracket	£9.06 £7.55
95	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
98	HV532 19 51-61 Available to backorder	Stud	£2.98 £2.48
99	HV529 84 64-01 In stock	Arm	Was £31.64 £26.37 Special Price £21.52 £17.93
100	HV532 19 65-39 Available to backorder	Bolt	£6.18 £5.15
102	HV532 40 25-11 Available to backorder	Spacer	£7.12 £5.93
104	HV581 71 40-01 Available to backorder	Cover	£29.76 £24.80
105	HV532 44 47-55 Available to backorder	Cover	£36.22 £30.18
110	HV587 93 48-01 Available to backorder	Gear	£54.68 £45.57
127	HV596 43 44-04 Available to backorder	Bolt	£5.65 £4.71
128	HV532 17 48-73 Available to backorder	Wheel	£20.62 £17.18
131	HV532 19 42-08 Available to backorder	Pin	£1.64 £1.37
135	HV532 43 79-88 Available to backorder	Ring	£5.38 £4.48
137	HV812 00 00-29 Available to backorder	Retainer Ring	£0.89 £0.74
139	HV532 44 07-42 Available to backorder	Clamp	£1.04 £0.87
141	HV532 44 77-03 Available to backorder	Guard	£42.24 £35.20
154	HV532 19 98-55 Available to backorder	Screw	£1.58 £1.32
159	HV585 30 94-05 Available to backorder	Reinforcement Plate	£6.46 £5.38
160	HV585 30 95-05 Available to backorder	Reinforcement Plate	£11.00 £9.17
161	HV585 31 60-05 Available to backorder	Reinforcement Plate	£5.18 £4.32
162	HV585 31 61-05 Available to backorder	Reinforcement Plate	£12.28 £10.23
163	HV872 11 04-06 Available to backorder	Bolt	£1.56 £1.30
247	HV581 26 34-02 Available to backorder	Guard	£16.82 £14.02
249	HV581 26 35-02 Available to backorder	Guard	£16.18 £13.48
258	HV584 95 39-01 Available to backorder	Bolt	£5.44 £4.53
