Husqvarna Cth 202T - Chassis & Enclosures

Description

Husqvarna Cth 202T

Model Year -

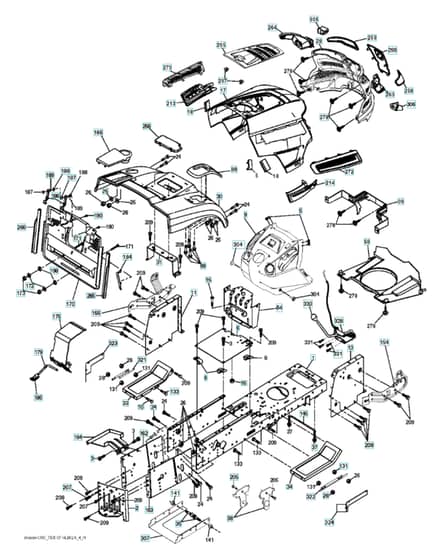

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
5	HV532 40 75-90 Available to backorder	Damping Piece	£5.96 £4.97
8	HV532 12 64-71 Available to backorder	Clip	£0.92 £0.77
13	HV532 17 82-98 Available to backorder	Panel	£37.32 £31.10
18	HV532 40 47-42 Available to backorder	Damping Piece	£12.28 £10.23
24	HV874 78 06-16 Available to backorder	Bolt	£6.34 £5.28
30	HV532 44 12-65 Available to backorder	Fender	£259.20 £216.00
31	HV532 16 51-56 Available to backorder	Bracket	£40.12 £33.43
37	HV817 49 05-08 Available to backorder	Screw	£3.62 £3.02
39	HV532 43 66-70 Available to backorder	Bracket	£70.52 £58.77
58	HV532 43 97-74 Available to backorder	Air Duct	£58.86 £49.05
69	HV532 14 24-32 Available to backorder	Screw	£2.34 £1.95
131	HV873 22 06-00 Available to backorder	Nut	£3.62 £3.02
133	HV872 11 06-08 Available to backorder	Bolt	£7.12 £5.93
164	HV532 16 56-05 Available to backorder	Support	£111.36 £92.80
165	HV532 44 17-72 Available to backorder	Cover	£46.58 £38.82
171	HV872 14 06-20 Available to backorder	Bolt	£7.76 £6.47
173	HV873 51 06-00 Available to backorder	Nut	£3.24 £2.70
184	HV532 17 46-62 Available to backorder	Bracket	£6.97 £5.81
185	HV532 44 14-16 Available to backorder	Knob	£19.00 £15.83
186	HV597 00 06-01 Available to backorder	Latch	£9.46 £7.88
188	HV819 06 12-16 Available to backorder	Washer	£2.84 £2.37
189	HV810 07 10-00 Available to backorder	Washer	£2.58 £2.15
190	HV596 03 90-01 Available to backorder	Screw	£1.21 £1.01
205	HV817 49 06-08 Available to backorder	Screw	£5.32 £4.43
209	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
213	HV532 43 97-29 Available to backorder	Skirt	£33.00 £27.50
214	HV532 43 97-30 Available to backorder	Skirt	£27.18 £22.65
258	HV532 43 97-32 Available to backorder	Lens	£20.96 £17.47
259	HV532 43 97-33 Available to backorder	Lens	£22.00 £18.33
272	HV532 43 97-28 Available to backorder	Cover	£29.12 £24.27
273	HV532 43 97-27 Available to backorder	Cover	£29.76 £24.80
278	HV532 41 63-58 Available to backorder	Screw	£2.06 £1.72
295	HV532 43 57-15 Available to backorder	Cover	£64.84 £54.03
297	HV532 19 91-45 Available to backorder	Clip	£0.92 £0.77
304	HV817 06 04-10 Available to backorder	Screw	£2.34 £1.95
330	HV532 44 06-39 Available to backorder	Knob	£12.36 £10.30
331	HV532 40 07-76 Available to backorder	Screw	£2.06 £1.72
