Husqvarna Cth 194 - Chassis & Enclosures

Description

Husqvarna Cth 194

Model Year -

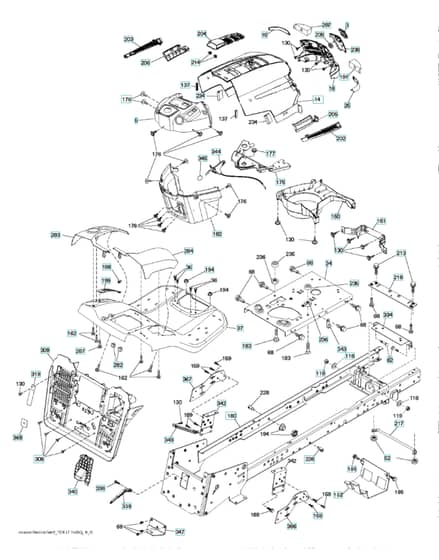

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
5	HV585 52 98-04 Available to backorder	Dash	£65.34 £54.45
14	HV532 44 12-67 Available to backorder	Hood	£139.49 £116.24
37	HV532 44 14-19 Available to backorder	Fender	£266.04 £221.70
62	HV872 11 06-08 Available to backorder	Bolt	£7.12 £5.93
68	HV817 49 05-08 Available to backorder	Screw	£3.62 £3.02
119	HV596 32 26-01 Available to backorder	Nut	£3.79 £3.16
130	HV532 41 63-58 Available to backorder	Screw	£2.06 £1.72
137	HV532 40 75-90 Available to backorder	Damping Piece	£5.96 £4.97
151	HV532 40 78-07 Available to backorder	Bracket	£51.76 £43.13
159	HV817 00 06-12 Available to backorder	Screw	£5.68 £4.73
162	HV532 14 24-32 Available to backorder	Screw	£2.34 £1.95
175	HV532 19 94-72 Available to backorder	Plate	£62.76 £52.30
176	HV532 40 07-76 Available to backorder	Screw	£2.06 £1.72
177	HV532 19 52-28 Available to backorder	Bushing	£10.78 £8.98
180	HV583 90 27-01 Available to backorder	Chassis	£195.00 £162.50
183	HV874 52 05-20 Available to backorder	Bolt	£4.78 £3.98
194	HV873 90 05-00 Available to backorder	Nut	£2.72 £2.27
204	HV532 44 13-75 Available to backorder	Cover	£39.46 £32.88
205	HV532 44 13-44 Available to backorder	Skirt	£26.54 £22.12
206	HV532 44 13-45 Available to backorder	Skirt	£27.18 £22.65
214	HV532 19 91-45 Available to backorder	Clip	£0.92 £0.77
228	HV532 19 51-61 Available to backorder	Stud	£2.98 £2.48
234	HV532 40 47-42 Available to backorder	Damping Piece	£12.28 £10.23
235	HV532 40 61-29 Available to backorder	Spacer	£9.16 £7.63
236	HV873 93 05-00 Available to backorder	Nut	£2.34 £1.95
239	HV532 40 48-83 Available to backorder	Clip	£0.92 £0.77
282	HV532 41 41-10 Available to backorder	Clip	£1.56 £1.30
283	HV532 44 72-12 Available to backorder	Console	£73.12 £60.93
308	HV532 17 18-77 Available to backorder	Bolt	£5.04 £4.20
319	HV581 31 39-06 Available to backorder	Lever	£10.36 £8.63
345	HV532 44 06-39 Available to backorder	Knob	£12.36 £10.30
368	HV581 42 48-01 Available to backorder	Shroud	£5.18 £4.32
