Husqvarna Cth 182T - Chassis & Enclosures

Description

Husqvarna Cth 182T

Model Year -

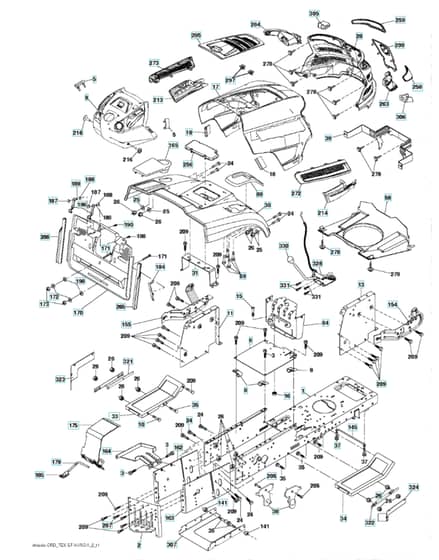

Chassis & Enclosures - Parts Diagram

	Part No.	Details
5	HV532 40 75-90 Available to backorder	Damping Piece	£5.90 £4.92
8	HV532 12 64-71 Available to backorder	Clip	£0.90 £0.75
13	HV532 17 82-98 Available to backorder	Panel	£37.69 £31.41
18	HV532 40 47-42 Available to backorder	Damping Piece	£12.18 £10.15
24	HV874 78 06-16 Available to backorder	Bolt	£6.29 £5.24
31	HV532 16 51-56 Available to backorder	Bracket	£39.73 £33.11
37	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
39	HV532 43 66-70 Available to backorder	Bracket	£67.56 £56.30
58	HV532 43 97-31 Available to backorder	Air Duct	£68.40 £57.00
69	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
164	HV532 16 56-05 Available to backorder	Support	£106.68 £88.90
171	HV872 14 06-20 Available to backorder	Bolt	£7.70 £6.42
173	HV873 51 06-00 Available to backorder	Nut	£3.22 £2.68
184	HV532 17 46-62 Available to backorder	Bracket	£5.89 £4.91
186	HV597 00 06-01 In stock	Latch	£9.79 £8.16
188	HV819 06 12-16 Available to backorder	Washer	£2.83 £2.36
189	HV810 07 10-00 Available to backorder	Washer	£2.56 £2.13
190	HV596 03 90-01 Available to backorder	Screw	£1.20 £1.00
205	HV817 49 06-08 Available to backorder	Screw	£5.24 £4.37
209	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
213	HV532 43 97-29 Available to backorder	Skirt	£32.70 £27.25
214	HV532 43 97-30 Available to backorder	Skirt	£26.92 £22.43
216	HV817 06 04-10 Available to backorder	Screw	£2.30 £1.92
258	HV532 43 97-32 Available to backorder	Lens	£20.77 £17.31
259	HV532 43 97-33 Available to backorder	Lens	£21.78 £18.15
272	HV532 43 97-28 Available to backorder	Cover	£28.84 £24.03
273	HV532 43 97-27 Available to backorder	Cover	£29.47 £24.56
278	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
295	HV532 43 57-15 Available to backorder	Cover	£62.16 £51.80
297	HV532 19 91-45 Available to backorder	Clip	£0.90 £0.75
330	HV532 44 06-39 Available to backorder	Knob	£12.48 £10.40
331	HV532 40 07-76 Available to backorder	Screw	£2.05 £1.71
