Husqvarna Cth 141 - Mower Deck & Cutting Deck

Name: Husqvarna Cth 141 - Mower Deck & Cutting Deck
SKU: cth_141_mower_deck_cutting_deck-group
Price: 1.85 GBP
Availability: InStock

Part No. cth_141_mower_deck_cutting_deck-group

Description

Husqvarna Cth 141

Model Year -

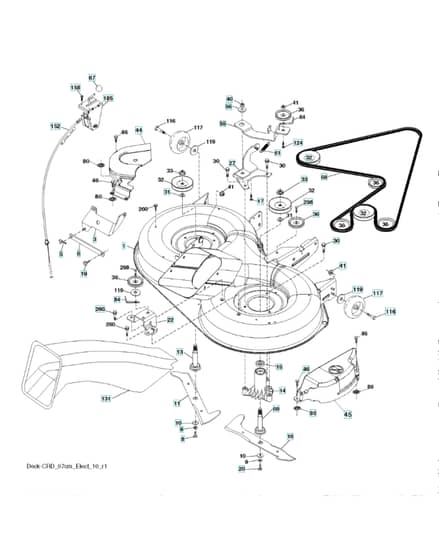

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
-1	HV532 43 15-80 Available to backorder	Cutting Deckreplacement Mower. Complete (Std. Deck - Order Separately Guage Wheel Components Key Nos. 116. 117 & 119)	£809.86 £674.88
6	HV532 16 55-57 Available to backorder	Rod	£23.08 £19.23
10	HV532 14 02-96 Available to backorder	Washer	£7.86 £6.55
11	HV532 42 79-84 In stock	Ride On Blade	£26.64 £22.20
14	HV532 12 87-74 Available to backorder	Bearing Housing	£73.32 £61.10
15	HV532 11 04-85 In stock	Bearing	£9.24 £7.70
16	HV532 42 79-85 In stock	Blade	£26.64 £22.20
31	HV532 18 76-90 Available to backorder	Washer	£3.66 £3.05
40	HV596 32 26-01 Available to backorder	Nut	£3.83 £3.19
45	HV532 43 89-68 Available to backorder	Mandrel	£44.48 £37.07
46	HV532 13 77-29 In stock	Screw	£2.22 £1.85
56	HV532 16 57-23 In stock	Spacer	Was £12.28 £10.23 Special Price £8.48 £7.07
67	HV532 10 69-32 Available to backorder	Knob	£9.08 £7.57
69	HV532 16 54-82 Available to backorder	Shaft	£65.28 £54.40
116	HV596 43 44-04 Available to backorder	Bolt	£5.48 £4.57
117	HV532 17 48-73 Available to backorder	Wheel	£20.74 £17.28
131	HV532 16 56-61 Available to backorder	Pipe	£111.48 £92.90
185	HV532 18 82-34 Available to backorder	Cable	£60.90 £50.75
260	HV817 67 06-08 Available to backorder	Screw	£5.24 £4.37
298	HV817 49 06-28 Available to backorder	Screw	£8.03 £6.69
