Husqvarna Ct135 - Engine & Cutting Equipment

Description

Husqvarna Ct135

Model Year - 2003-01

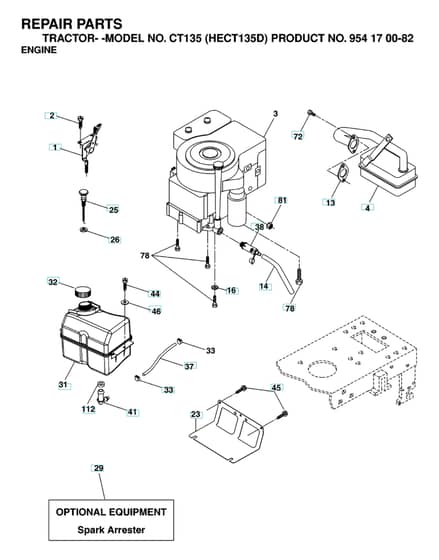

Engine & Cutting Equipment - Parts Diagram

	Part No.	Details
-1	HV810 04 05-00 Available to backorder	Washer	£1.78 £1.48
1	HV532 17 05-51 Available to backorder	Throttle Control	£40.38 £33.65
4	HV532 13 73-52 Available to backorder	Muffler	£102.36 £85.30
23	HV531 15 07-01 Available to backorder	Heat Shield	£47.34 £39.45
29	HV532 13 71-80 Available to backorder	Spark Arrester Kit	£46.73 £38.94
33	HV532 12 34-87 Available to backorder	Hose Clamp	£0.77 £0.64
37	HV532 13 70-40 Available to backorder	Hose	£15.25 £12.71
41	HV532 13 92-77 Available to backorder	Nipple	£8.34 £6.95
44	HV817 67 04-12 Available to backorder	Screw	£5.24 £4.37
45	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
46	HV819 09 14-16 Available to backorder	Washer	£3.07 £2.56
78	HV817 06 06-20 Available to backorder	Screw	£5.75 £4.79
