Husqvarna Ct130 - Chassis & Enclosures

Husqvarna Ct130 - Chassis & Enclosures

Part No. ct130_2000_03_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Ct130 - Chassis & Enclosures

Husqvarna Ct130 - Chassis & Enclosures

Description

Husqvarna Ct130

Model Year - 2000-03

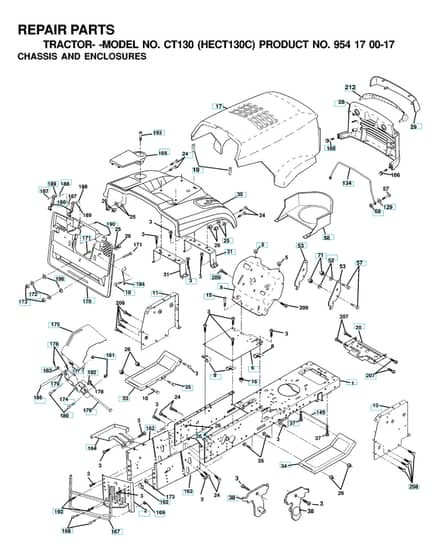

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	8		HV532 12 64-71 Available to backorder	Clip		£0.90 £0.75
	24		HV874 78 06-16 Available to backorder	Bolt		£6.29 £5.24
	31		HV532 16 51-56 Available to backorder	Bracket		£39.73 £33.11
	37		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	52		HV819 09 14-16 Available to backorder	Washer		£3.07 £2.56
	71		HV873 68 04-00 Available to backorder	Nut		£2.94 £2.45
	164		HV532 16 56-05 Available to backorder	Support		£106.68 £88.90
	168		HV872 05 04-12 Available to backorder	Bolt		£3.59 £2.99
	173		HV873 51 06-00 Available to backorder	Nut		£3.22 £2.68
	177		HV532 13 27-96 Available to backorder	Spring		£10.24 £8.53
	185		HV532 16 59-40 Available to backorder	Pipe		£5.70 £4.75
	186		HV597 00 06-01 In stock	Latch		£9.79 £8.16
	188		HV819 06 12-16 Available to backorder	Washer		£2.83 £2.36
	189		HV810 07 10-00 Available to backorder	Washer		£2.56 £2.13
	193		HV817 07 04-12 Available to backorder	Screw		£1.84 £1.53
	208		HV817 67 06-08 Available to backorder	Screw		£5.24 £4.37
	209		HV817 00 06-12 Available to backorder	Screw		£5.78 £4.82

Description

Husqvarna Ct130

Model Year - 2000-03

Chassis & Enclosures - Parts Diagram
