Husqvarna Ct 153 - Drive

Name: Husqvarna Ct 153 - Drive
SKU: ct_153_drive-group
Price: 0.47 GBP
Availability: InStock

Part No. ct_153_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Ct 153

Model Year -

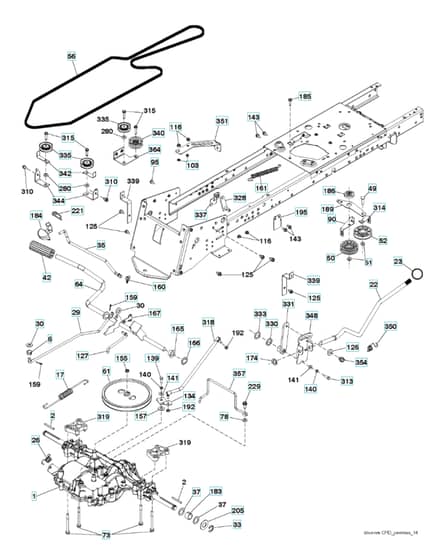

Drive - Parts Diagram

	Part No.	Details
2	HV532 12 35-83 In stock	Key	£7.18 £5.98
22	HV532 44 32-46 Available to backorder	Rod	£46.14 £38.45
23	HV532 12 12-74 Available to backorder	Knob	£10.90 £9.08
26	HV532 14 66-82 Available to backorder	Spring	£4.12 £3.43
33	HV812 00 00-01 Available to backorder	Retainer Ring	£0.77 £0.64
35	HV532 40 10-31 Available to backorder	Rod	£12.82 £10.68
37	HV532 12 17-49 In stock	Washer	£2.82 £2.35
49	HV872 11 06-14 Available to backorder	Bolt	£7.06 £5.88
52	HV532 19 43-26 Available to backorder	Pulley	£42.83 £35.69
64	HV532 19 62-00 Available to backorder	Shaft	£100.32 £83.60
73	HV874 49 05-56 Available to backorder	Bolt	£3.37 £2.81
95	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
116	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
126	HV532 16 60-02 Available to backorder	Washer	£4.86 £4.05
127	HV532 19 43-23 Available to backorder	Link	£7.96 £6.63
134	HV532 14 50-90 Available to backorder	Lever	£10.90 £9.08
140	HV596 02 98-01 Available to backorder	Washer	£2.44 £2.03
143	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
155	HV812 00 00-28 Available to backorder	Clip	£0.56 £0.47
160	HV532 16 94-84 Available to backorder	Pin	£4.12 £3.43
161	HV532 10 57-09 Available to backorder	Spring	£16.97 £14.14
165	HV532 19 62-12 Available to backorder	Bushing	£10.26 £8.55
166	HV532 42 91-64 Available to backorder	Nut	£1.88 £1.57
167	HV532 40 52-57 Available to backorder	Latch	£5.78 £4.82
174	HV532 19 72-89 Available to backorder	Nut	£2.05 £1.71
183	HV532 13 70-57 Available to backorder	Spacer	£9.79 £8.16
184	HV532 44 14-07 Available to backorder	Brake	£11.28 £9.40
185	HV872 11 06-22 Available to backorder	Bolt	£8.32 £6.93
186	HV532 19 43-21 In stock	Spacer	£14.36 £11.97
205	HV532 12 17-48 Available to backorder	Washer	£6.00 £5.00
221	HV532 40 31-87 Available to backorder	Spring	£3.84 £3.20
229	HV817 06 05-16 Available to backorder	Screw	£5.02 £4.18
310	HV817 49 06-08 Available to backorder	Screw	£5.24 £4.37
314	HV532 12 32-05 Available to backorder	Belt Guide	£7.06 £5.88
315	HV817 58 05-20 Available to backorder	Bolt	£5.24 £4.37
330	HV532 16 95-93 Available to backorder	Washer	£2.30 £1.92
333	HV532 17 08-68 Available to backorder	Washer	£2.56 £2.13
335	HV532 19 95-34 In stock	Pulley	£18.66 £15.55
350	HV532 16 57-11 Available to backorder	Spring	£3.96 £3.30
354	HV817 49 05-10 Available to backorder	Screw	£3.97 £3.31
